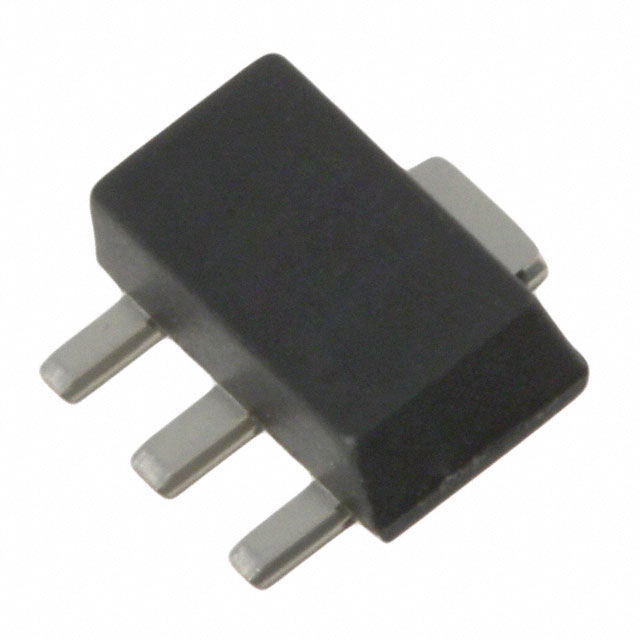

SKY65015-70LF
ActiveSkyworks Solutions Inc.
WIDE BAND LOW POWER AMPLIFIER, 6000MHZ MAX, 1 FUNC, SOT-89, 3 PIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SKY65015-70LF
ActiveSkyworks Solutions Inc.
WIDE BAND LOW POWER AMPLIFIER, 6000MHZ MAX, 1 FUNC, SOT-89, 3 PIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SKY65015-70LF |
|---|---|
| Current - Supply | 120 mA |
| Frequency [Max] | 6 GHz |
| Frequency [Min] | 100 MHz |
| Gain | 18 dBi |
| Mounting Type | Surface Mount |
| Noise Figure | 4.2 dB |
| P1dB | 17 dBm |
| Package / Case | TO-243AA |
| RF Type | HLAN, DBS, WLAN |
| Supplier Device Package | SOT-89-3 |
| Test Frequency | 2 GHz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.07 | |
| 10 | $ 1.84 | |||
| 25 | $ 1.66 | |||
| 100 | $ 1.51 | |||
| 250 | $ 1.36 | |||
| 500 | $ 1.30 | |||
| Digi-Reel® | 1 | $ 2.07 | ||
| 10 | $ 1.84 | |||
| 25 | $ 1.66 | |||
| 100 | $ 1.51 | |||
| 250 | $ 1.36 | |||
| 500 | $ 1.30 | |||
| Tape & Reel (TR) | 1000 | $ 1.30 | ||
Description
General part information
SKY65015 Series
RF Amplifier IC DBS, HLAN, WLAN 100MHz ~ 6GHz SOT-89-3
