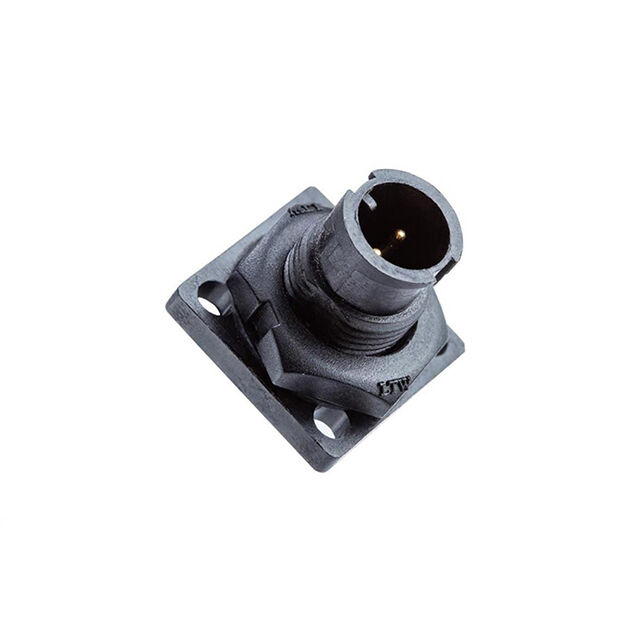

AAD-03PMMS-LS7001

Active

Amphenol LTW

MINI STAMPING PIN

Search across all available documentation for this part.

Active

Amphenol LTW

MINI STAMPING PIN

Technical Specifications

Parameters and characteristics for this part

Specification	AAD-03PMMS-LS7001

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut, Flange
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	A
Shielding	Unshielded
Voltage Rating	250 VAC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Insert Material	Contact Finish - Mating	Voltage Rating	Ingress Protection	Shell Material	Primary Material	Connector Type	Color	Orientation	Fastening Type	Shielding	Contact Material	Material Flammability Rating	Shell Size - Insert	Current Rating (Amps)
Amphenol LTW AAD-03PMMS-LS7001	-40 °C	105 ░C	Bulkhead - Front Side Nut Flange	Polyamide (PA) Nylon Glass Filled	Gold	250 VAC	IP67 - Dust Tight Waterproof	Glass Filled Nylon Polyamide (PA)	Plastic	Male Pins Receptacle	Black	Keyed	Bayonet Lock	Unshielded	Copper Alloy	UL94 V-0	A	5 A
Amphenol LTW AAD-03PMMS-LC7001	-40 °C	105 ░C	Bulkhead - Front Side Nut	Nylon Polyamide (PA)	Gold	300 VDC	IP67 - Dust Tight Waterproof	Glass Filled Nylon Polyamide (PA)	Plastic	Male Pins Receptacle	Black	Keyed	Bayonet Lock	Unshielded	Copper Alloy		A	5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 4.15

General part information

3 Position Circular Connector Receptacle, Male Pins Solder Cup
