6284UE 009500

Active

Belden Inc.

CABLE CAT5E 6COND 16/23AWG

Search across all available documentation for this part.

Active

Belden Inc.

CABLE CAT5E 6COND 16/23AWG

Technical Specifications

Parameters and characteristics for this part

Specification	6284UE 009500

Cable Type	Multi-Pair, Cat5e
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Copper, Tinned, Copper, Bare
Conductor Strand	0.6551724137931034
Conductor Strand	Solid
Jacket (Insulation) Diameter [diameter]	0.187 in
Jacket (Insulation) Diameter [diameter]	4.75 mm
Jacket (Insulation) Material	Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum
Jacket (Insulation) Thickness	0.368 mm
Jacket (Insulation) Thickness	0.0145 in
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	6
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-10 °C
Ratings	UL Style CMP
Usage	PTZ Camera
Voltage	300 V
Wire Gauge	16 AWG, 23 AWG

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Conductor Material	Number of Conductors	Length	Length	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Voltage	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Conductor Strand	Conductor Strand	Usage	Ratings	Cable Type	Length [x]	Length [x]
Belden Inc. 6284UE 0101000	0.368 mm	0.0145 in	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	Copper Bare Copper Tinned	6	1000 ft	304.8 m	0.187 in	4.75 mm	Fluorinated Ethylene-Propylene (FEP)	300 V	16 AWG 23 AWG	-10 °C	75 ░C	Black	0.6551724137931034	Solid	PTZ Camera	UL Style CMP	Multi-Pair Cat5e
Belden Inc. 6284UE 009500	0.368 mm	0.0145 in	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	Copper Bare Copper Tinned	6			0.187 in	4.75 mm	Fluorinated Ethylene-Propylene (FEP)	300 V	16 AWG 23 AWG	-10 °C	75 ░C		0.6551724137931034	Solid	PTZ Camera	UL Style CMP	Multi-Pair Cat5e	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 0.89

General part information

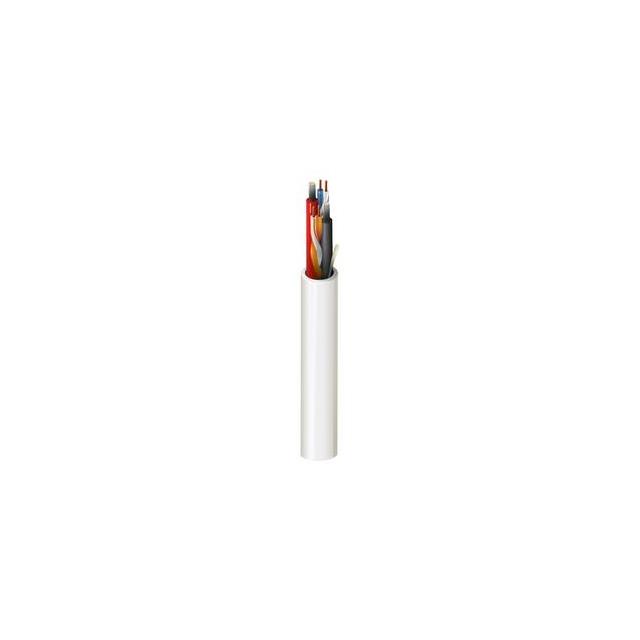

6 (2 Twisted Pairs + 2) Conductor Multi-Pair, Cat5e Cable White 16 AWG, 23 AWG 500.0' (152.4m)
