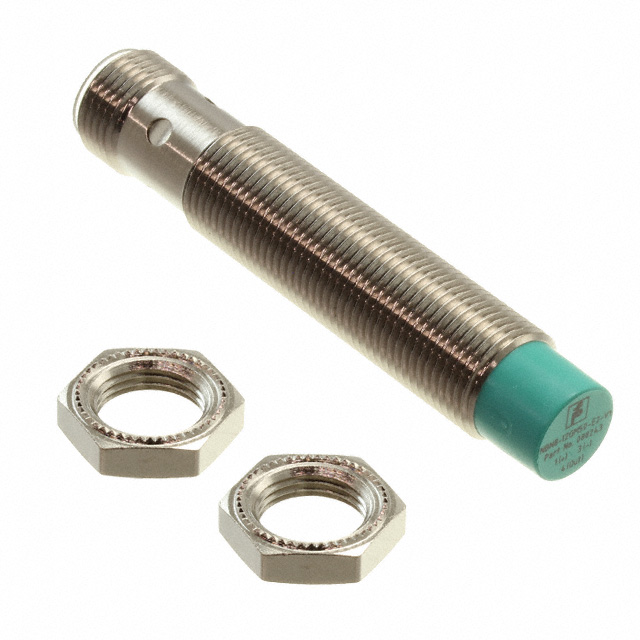

NBN8-12GM50-E2-V1
ActivePEPPERL+FUCHS
INDUCTIVE PROXIMITY SENSOR, M12, 8 MM, PNP, 10 VDC TO 30 VDC
Deep-Dive with AI
Search across all available documentation for this part.
NBN8-12GM50-E2-V1
ActivePEPPERL+FUCHS
INDUCTIVE PROXIMITY SENSOR, M12, 8 MM, PNP, 10 VDC TO 30 VDC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NBN8-12GM50-E2-V1 |
|---|---|
| Indicator [custom] | LED |
| Ingress Protection | IP67 |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | PNP-NO, 3-Wire |
| Package / Case | Cylinder, Threaded - M12 |
| Sensing Distance | 0.315 in |
| Sensing Distance | 8 mm |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
NBN8-12 Series
INDUCTIVE PROXIMITY SENSOR, M12, 8 MM, PNP, 10 VDC TO 30 VDC
Documents
Technical documentation and resources
