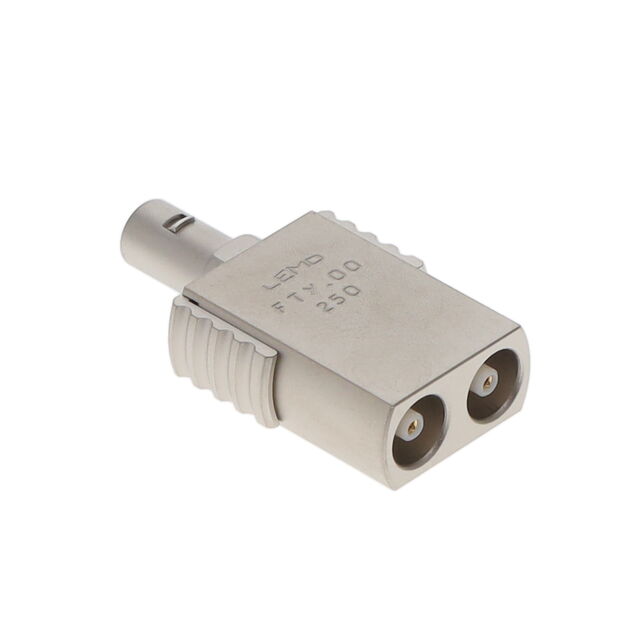

FTY.00.250.NTF

Active

LEMO

CONN ADAPT PLUG-JACK NIM-CAMAC

Search across all available documentation for this part.

Active

LEMO

CONN ADAPT PLUG-JACK NIM-CAMAC

Technical Specifications

Parameters and characteristics for this part

Specification	FTY.00.250.NTF

Adapter Series	NIM-CAMAC CD/N 549 to NIM-CAMAC CD/N 549, Dual
Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass, Bronze
Center Contact Plating	Gold
Conversion Type	Same Series
Convert From (Adapter End)	NIM-CAMAC CD/N 549 Plug, Male Pin
Convert To (Adapter End)	NIM-CAMAC CD/N 549 Jack, Female Socket (2)
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull
Impedance	50 Ohms
Ingress Protection	IP50
Mating Cycles	5000
Mounting Type	Free Hanging (In-Line)
Style	Straight

Part	Body Material	Convert To (Adapter End)	Body Finish	Adapter Type	Center Contact Plating	Dielectric Material	Style	Impedance	Convert From (Adapter End)	Mounting Type	Mating Cycles	Adapter Series	Ingress Protection	Center Contact Material	Fastening Type	Conversion Type
LEMO FTY.00.250.NTF	Brass	NIM-CAMAC CD/N 549 Jack Female Socket (2)	Nickel	Plug to Jack	Gold	Polytetrafluoroethylene (PTFE)	Straight	50 Ohms	NIM-CAMAC CD/N 549 Plug Male Pin	Free Hanging (In-Line)	5000	NIM-CAMAC CD/N 549 to NIM-CAMAC CD/N 549 Dual	IP50	Brass Bronze	Push-Pull	Same Series
LEMO FTY.00.250.CTF	Brass	NIM-CAMAC CD/N 549 Jack Female Socket (2)	Chrome	Plug to Jack	Gold	Polytetrafluoroethylene (PTFE)	Straight	50 Ohms	NIM-CAMAC CD/N 549 Plug Male Pin	Free Hanging (In-Line)	5000	NIM-CAMAC CD/N 549 to NIM-CAMAC CD/N 549 Dual	IP50	Brass Bronze	Push-Pull	Same Series

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector NIM-CAMAC CD/N 549 Plug, Male Pin To NIM-CAMAC CD/N 549 Jack, Female Socket (2) 50 Ohms
