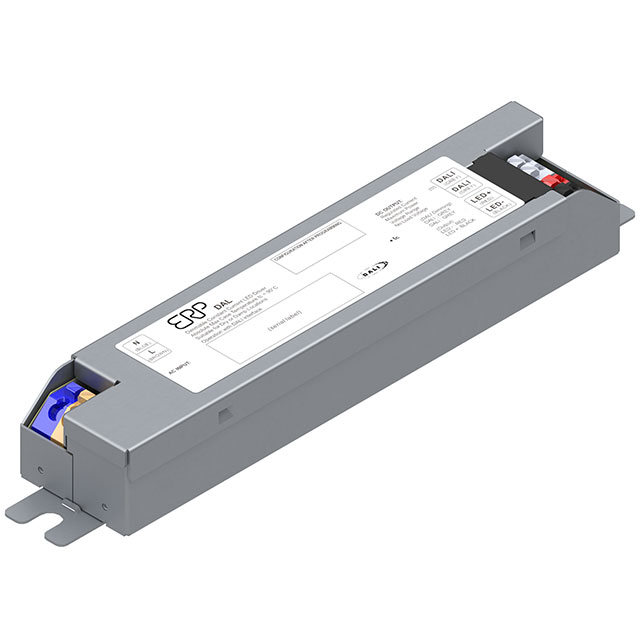

DAL50W-1200-42-T
ActiveERP Power, LLC
PROGRAMMABLE CC LED DRIVER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DAL50W-1200-42-T
ActiveERP Power, LLC
PROGRAMMABLE CC LED DRIVER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DAL50W-1200-42-T |
|---|---|
| Approval Agency | CE, ENEC, cULus, CB, FCC |
| Current - Output (Max) [Max] | 1.2 A |
| Dimming | DALI |
| Efficiency | 90 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 50 W |
| Ratings | IP20 |
| Size / Dimension [x] | 132.2 mm |
| Size / Dimension [x] | 5.21 in |
| Size / Dimension [y] | 1.2 " |
| Size / Dimension [y] | 30.6 mm |
| Size / Dimension [z] | 0.81 in |
| Size / Dimension [z] | 20.7 mm |
| Termination Style | Terminal Block |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 277 VAC |
| Voltage - Input (Min) [Min] | 120 VAC |
| Voltage - Output [Max] | 42 V |
| Voltage - Output [Min] | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 47.32 | |
| 5 | $ 44.83 | |||
| 10 | $ 42.34 | |||
| 25 | $ 40.47 | |||
| 50 | $ 38.61 | |||
| 100 | $ 37.36 | |||
| 250 | $ 34.25 | |||
Description
General part information
DAL50W Series
1.2A 28 ~ 42V Constant Current LED Driver AC DC Converter Topology 1 Output
