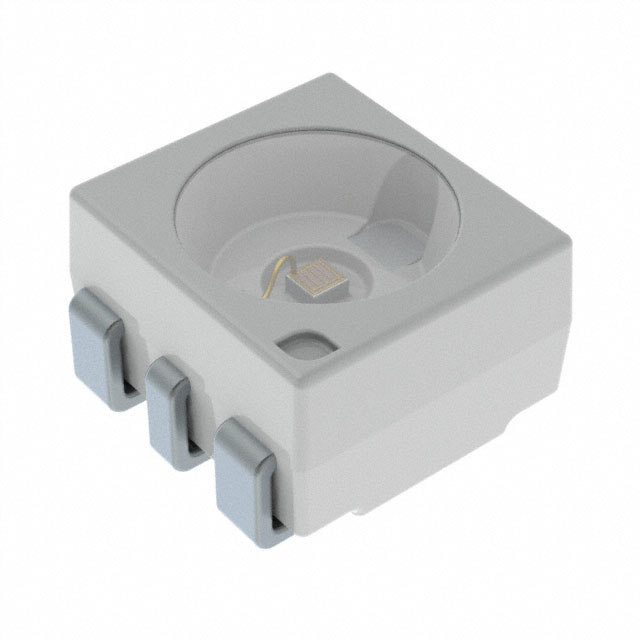

LA G6SP-DAFA-24-1-140-R18-Z

NRND

ams-OSRAM USA INC.

LED TOPLED AMBER 617NM 6PLCC

Search across all available documentation for this part.

NRND

ams-OSRAM USA INC.

LED TOPLED AMBER 617NM 6PLCC

Technical Specifications

Parameters and characteristics for this part

Specification	LA G6SP-DAFA-24-1-140-R18-Z

Color	Amber
Current - Max [Max]	200 mA
Current - Test	140 mA
Height - Seated (Max) [Max] [z]	2.1 mm
Height - Seated (Max) [Max] [z]	0.083 "
Lumens/Watt @ Current - Test	30 lm/W
Luminous Flux @ Current/Temperature	9 lm
Mounting Type	Surface Mount
Package / Case	6-SMD, J-Lead
Size / Dimension [x]	3.3 mm
Size / Dimension [x]	0.13 in
Size / Dimension [y]	3 mm
Size / Dimension [y]	0.118 in
Supplier Device Package	6-PLCC
Thermal Resistance of Package [diameter]	60 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	2.15 V
Wavelength	617 nm
Wavelength [Max]	624 nm
Wavelength [Min]	612 nm

Part	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Wavelength [Max]	Wavelength [Min]	Wavelength	Package / Case	Current - Max [Max]	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Viewing Angle	Current - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Color	Lumens/Watt @ Current - Test	Thermal Resistance of Package [diameter]	Luminous Flux @ Current/Temperature
ams-OSRAM USA INC. LA G6SP.01-8D6F-24-G3R3-140-R18-Z	3.3 mm	0.13 in	3 mm	0.118 in	624 nm	612 nm	617 nm	6-PLCC	200 mA	2.2 V	6-PLCC	120 °	140 mA	2.1 mm	0.083 "	Surface Mount	Amber
ams-OSRAM USA INC. LA G6SP-DAFA-24-1-140-R18-Z	3.3 mm	0.13 in	3 mm	0.118 in	624 nm	612 nm	617 nm	6-SMD J-Lead	200 mA	2.15 V	6-PLCC	120 °	140 mA	2.1 mm	0.083 "	Surface Mount	Amber	30 lm/W	60 °C/W	9 lm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting Color Advanced Power TOPLED® Amber 617nm (612nm ~ 624nm) 6-SMD, J-Lead
