IPS1025HFQ

Active

STMicroelectronics

HIGH EFFICIENCY, HIGH-SIDE SWITCH WITH EXTENDED DIAGNOSTICS, SMART DRIVING FOR CAPACITIVE LOADS AND SHORT PROPAGATION DELAY AT POWER-ON

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet +3

IPS1025HFQ

Active

STMicroelectronics

HIGH EFFICIENCY, HIGH-SIDE SWITCH WITH EXTENDED DIAGNOSTICS, SMART DRIVING FOR CAPACITIVE LOADS AND SHORT PROPAGATION DELAY AT POWER-ON

Deep-Dive with AI

DocumentsDatasheet +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IPS1025HFQ

Current - Output (Max) [Max]	2.4 A
Fault Protection	Current Limiting (Fixed), UVLO, Over Temperature, Over Load
Input Type	Non-Inverting
Interface	Logic
Mounting Type	Surface Mount
Number of Outputs	1
Output Configuration	High Side
Output Type	N-Channel

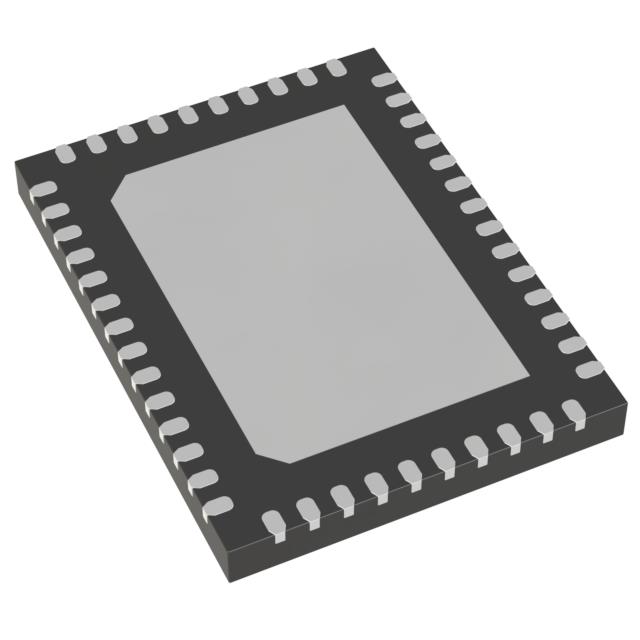

Package / Case	48-VFQFN Exposed Pad
Ratio - Input:Output [custom]	1:1
Rds On (Typ)	12 mOhm
Supplier Device Package	48-QFN (8x6)
Switch Type	General Purpose
Voltage - Load [Max]	60 V
Voltage - Load [Min]	8.65 V
Voltage - Supply (Vcc/Vdd)	False

X-NUCLEO-OUT15A1 Series

High efficiency, high-side switch with extended diagnostics, smart driving for capacitive loads and short propagation delay at power-on

Part	Rds On (Typ)	Mounting Type	Number of Outputs	Switch Type	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Output Configuration	Fault Protection	Interface	Package / Case [y]	Package / Case	Package / Case [y]	Current - Output (Max) [Max]	Ratio - Input:Output [custom]	Output Type	Supplier Device Package	Input Type	Type	Platform	Suggested Programming Environment	Utilized IC / Part	Function	Contents	Interconnect System	Voltage - Load [Max]	Voltage - Load [Min]
STMicroelectronics IPS1025H	12 mOhm	Surface Mount	1	General Purpose	8 V	60 V	High Side	Current Limiting (Adjustable) Open Load Detect Over Temperature Reverse Current UVLO	Logic	7.5 mm	24-PowerBSOP	0.295 in	5 A	1:1	N-Channel	PowerSSO-24	Non-Inverting
STMicroelectronics IPS1025HTR-32	12 mOhm	Surface Mount	1	General Purpose	8 V	60 V	High Side	Current Limiting (Adjustable) Open Load Detect Over Temperature Reverse Current UVLO	Logic	7.5 mm	24-PowerBSOP	0.295 in	5 A	1:1	N-Channel	PowerSSO-24	Non-Inverting
STMicroelectronics IPS1025HTR	12 mOhm	Surface Mount	1	General Purpose	8 V	60 V	High Side	Current Limiting (Adjustable) Open Load Detect Over Temperature Reverse Current UVLO	Logic	7.5 mm	24-PowerBSOP	0.295 in	5 A	1:1	N-Channel	PowerSSO-24	Non-Inverting
STMicroelectronics STEVAL-IFP045V1																		Power Management	Nucleo	STM32Cube	IPS1025H	Driver	Board(s)	Arduino R3 Shield ST Morpho
STMicroelectronics STEVAL-IFP040V1																		Power Management	Nucleo	STM32Cube	IPS1025HF	Driver	Board(s)	Arduino R3 Shield ST Morpho
STMicroelectronics IPS1025HFQ	12 mOhm	Surface Mount	1	General Purpose			High Side	Current Limiting (Fixed) Over Load Over Temperature UVLO	Logic		48-VFQFN Exposed Pad		2.4 A	1:1	N-Channel	48-QFN (8x6)	Non-Inverting								60 V	8.65 V
STMicroelectronics STEVAL-IFP046V1																		Power Management	Nucleo	STM32Cube	IPS1025H-32	Driver	Board(s)	Arduino R3 Shield ST Morpho
STMicroelectronics IPS1025HFTR	12 mOhm	Surface Mount	1	General Purpose	8.65 V	60 V	High Side	Current Limiting (Fixed) Over Temperature Over Voltage Short Circuit UVLO	On/Off	7.5 mm	24-PowerBSOP	0.295 in		1:1	N-Channel	PowerSSO-24	Non-Inverting
STMicroelectronics X-NUCLEO-OUT15A1																		Power Management	Nucleo	STM32Cube	IPS1025HF	Driver	Board(s)	Arduino R3 Shield ST Morpho

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 6.60
		10	$ 5.92
		25	$ 5.60
		100	$ 4.85
		250	$ 4.60
		500	$ 4.13
		1000	$ 3.48
	Digi-Reel®	1	$ 6.60
		10	$ 5.92
		25	$ 5.60
		100	$ 4.85
		250	$ 4.60
		500	$ 4.13
		1000	$ 3.48
	Tape & Reel (TR)	2500	$ 3.31
Newark	Each (Supplied on Cut Tape)	1	$ 5.91
		10	$ 4.53
		25	$ 4.18
		50	$ 3.99
		100	$ 3.80
		250	$ 3.62
		500	$ 3.51
		1000	$ 3.42

Description

General part information

X-NUCLEO-OUT15A1 Series

The IPS1025HF and IPS1025HFQ are single high-side switch ICs able to drive capacitive, resistive or inductive loads with one side connected to ground.

The 60 V operating range and RDS-ON = 12 mΩ (typ.), combined with the extended diagnostic (Over Load, Over-temperature) and the < 60 us propagation delay time at startup (enabling Class 3 for interface types C and D), make the IC suitable for applications implementing the proper architectures to address higher SIL levels.

The very low RDS-ON (≤ 25 mΩ up to TJ = 125 °C) makes the IC suitable for the applications with up to 2.4 A steady state operating current.

Documents

Technical documentation and resources

IPS1025HFQ

Deep-Dive with AI

IPS1025HFQ

Deep-Dive with AI

Technical Specifications

X-NUCLEO-OUT15A1 Series

Pricing

Description

X-NUCLEO-OUT15A1 Series

Documents

Datasheet

DS13869

AN5840

X-NUCLEO-OUT15A1 Series
