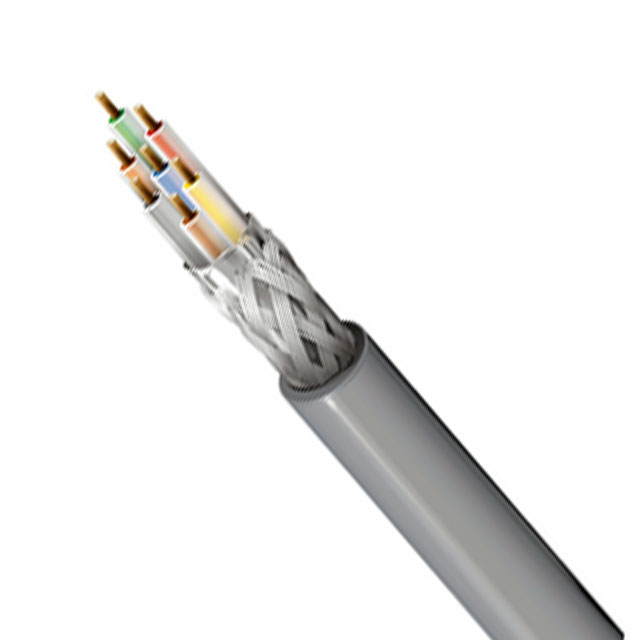

1540A 0081000

Active

Belden Inc.

MULTI-PAIR 7COND 28AWG GRAY

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 7COND 28AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	1540A 0081000

Cable Type	Multi-Pair
Conductor Insulation	Polyethylene (PE), Polypropylene (PP)
Conductor Material	Copper, Bare
Conductor Strand [custom]	36 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	4.83 mm
Jacket (Insulation) Diameter [diameter]	0.19 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.483 mm
Jacket (Insulation) Thickness	0.019 in
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Number of Conductors	7
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Voltage	150 V
Wire Gauge	28 AWG

Part	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Features	Shield Material	Cable Type	Wire Gauge	Shield Coverage	Shield Type	Jacket (Insulation) Material	Voltage	Jacket Color	Length	Length	Conductor Insulation
Belden Inc. 1540A 0081000	7	4.83 mm	0.19 in	36 AWG	7	Copper Bare	0.483 mm	0.019 in	Drain Wire	Aluminum Copper Tinned	Multi-Pair	28 AWG	65 % 100 %	Braid Foil	Poly-Vinyl Chloride (PVC)	150 V	Gray	1000 ft	304.8 m	Polyethylene (PE) Polypropylene (PP)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 8.05

General part information

7 (3.5 Pair Twisted) Conductor Multi-Pair Cable Gray 28 AWG Foil, Braid 1000.0' (304.8m)
