G125-MV21205L0P

Active

Harwin Inc.

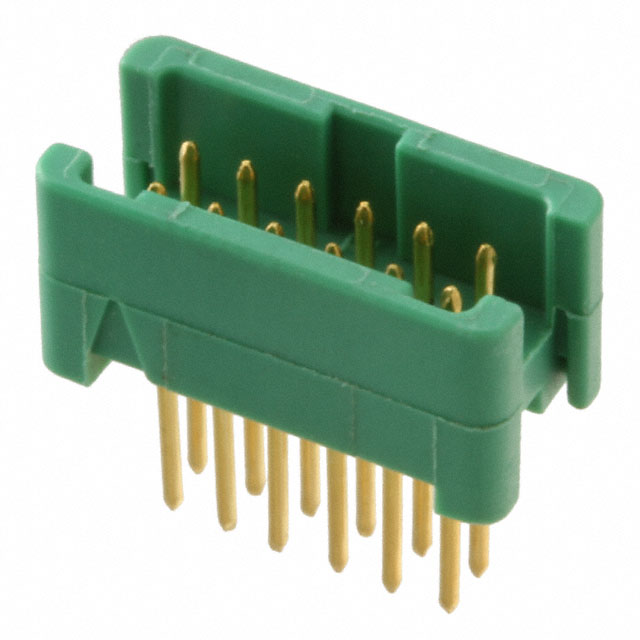

6+6 POS. MALE DIL VERTICAL THROUGHBOARD CONN. NO LATCHES ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsG125-2040696L0 Datasheet +2

G125-MV21205L0P

Active

Harwin Inc.

6+6 POS. MALE DIL VERTICAL THROUGHBOARD CONN. NO LATCHES ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsG125-2040696L0 Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G125-MV21205L0P

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Length - Post	0.177 in
Contact Length - Post	4.5 mm
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Features	Pick and Place, Board Lock
Insulation Color	Green
Insulation Height	4.9 mm
Insulation Height	0.193 in
Insulation Material	Polyamide (PA4T), Nylon 4T, Halogen Free, Glass Filled
Mated Stacking Heights	7.25 mm, 7.35 mm, 7.7 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	1.25 mm
Pitch - Mating	0.049 in
Row Spacing - Mating	0.049 in
Row Spacing - Mating	1.25 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

G125-MV2 Series

Part	Contact Finish - Mating	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Material	Current Rating (Amps)	Features	Row Spacing - Mating	Row Spacing - Mating	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Insulation Material	Mounting Type	Number of Positions Loaded	Style	Mated Stacking Heights	Contact Shape	Material Flammability Rating	Connector Type	Contact Length - Post	Contact Length - Post	Number of Positions	Insulation Color	Insulation Height	Insulation Height	Shrouding	Number of Rows	Number of Positions
Harwin Inc. G125-MV21205L0P	Gold	Push-Pull	-65 ░C	150 °C	Male Pin	Phosphor Bronze	2 A	Board Lock Pick and Place	0.049 in	1.25 mm	Solder	0.203 Ám	8 Áin	1.25 mm	0.049 in	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Through Hole	All	Board to Board Cable	7.25 mm 7.35 mm 7.7 mm	Circular	UL94 V-0	Header	0.177 in	4.5 mm	12	Green	4.9 mm	0.193 in	Shrouded - 4 Wall	2
Harwin Inc. G125-MV22605L2P	Gold	Latch Lock	-65 ░C	150 °C	Male Pin	Phosphor Bronze	2 A	Board Lock Pick and Place	0.049 in	1.25 mm	Solder	0.203 Ám	8 Áin	1.25 mm	0.049 in	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Through Hole	All	Board to Board Cable	7.25 mm 7.35 mm 7.7 mm	Circular	UL94 V-0	Header	0.177 in	4.5 mm	26	Green	4.9 mm	0.193 in	Shrouded - 4 Wall	2
Harwin Inc. G125-MV22605L0R	Gold	Push-Pull	-65 ░C	150 °C	Male Pin	Phosphor Bronze	2 A	Board Lock Pick and Place	0.049 in	1.25 mm	Solder	0.203 Ám	8 Áin	1.25 mm	0.049 in	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Through Hole	All	Board to Board Cable	7.25 mm 7.35 mm 7.7 mm	Circular	UL94 V-0	Header	0.177 in	4.5 mm	26	Green	4.9 mm	0.193 in	Shrouded - 4 Wall	2
Harwin Inc. G125-MV21605L2R	Gold	Latch Lock	-65 ░C	150 °C	Male Pin	Phosphor Bronze	2 A	Board Lock Pick and Place	0.049 in	1.25 mm	Solder	0.203 Ám	8 Áin	1.25 mm	0.049 in	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Through Hole	All	Board to Board Cable	7.25 mm 7.35 mm 7.7 mm	Circular	UL94 V-0	Header	0.177 in	4.5 mm		Green	4.9 mm	0.193 in	Shrouded - 4 Wall	2	16
Harwin Inc. G125-MV21605L0P	Gold	Push-Pull	-65 ░C	150 °C	Male Pin	Phosphor Bronze	2 A	Board Lock Pick and Place	0.049 in	1.25 mm	Solder	0.203 Ám	8 Áin	1.25 mm	0.049 in	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Through Hole	All	Board to Board Cable	7.25 mm 7.35 mm 7.7 mm	Circular	UL94 V-0	Header	0.177 in	4.5 mm		Green	4.9 mm	0.193 in	Shrouded - 4 Wall	2	16
Harwin Inc. G125-MV21005L2P	Gold	Latch Lock	-65 ░C	150 °C	Male Pin	Phosphor Bronze	2 A	Board Lock Pick and Place	0.049 in	1.25 mm	Solder	0.203 Ám	8 Áin	1.25 mm	0.049 in	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Through Hole	All	Board to Board Cable	7.25 mm 7.35 mm 7.7 mm	Circular	UL94 V-0	Header	0.177 in	4.5 mm	10	Green	4.9 mm	0.193 in	Shrouded - 4 Wall	2
Harwin Inc. G125-MV22005L2P	Gold	Latch Lock	-65 ░C	150 °C	Male Pin	Phosphor Bronze	2 A	Board Lock Pick and Place	0.049 in	1.25 mm	Solder	0.203 Ám	8 Áin	1.25 mm	0.049 in	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Through Hole	All	Board to Board Cable	7.25 mm 7.35 mm 7.7 mm	Circular	UL94 V-0	Header	0.177 in	4.5 mm	20	Green	4.9 mm	0.193 in	Shrouded - 4 Wall	2
Harwin Inc. G125-MV21205L2P	Gold	Latch Lock	-65 ░C	150 °C	Male Pin	Phosphor Bronze	2 A	Board Lock Pick and Place	0.049 in	1.25 mm	Solder	0.203 Ám	8 Áin	1.25 mm	0.049 in	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Through Hole	All	Board to Board Cable	7.25 mm 7.35 mm 7.7 mm	Circular	UL94 V-0	Header	0.177 in	4.5 mm	12	Green	4.9 mm	0.193 in	Shrouded - 4 Wall	2
Harwin Inc. G125-MV23405L0P	Gold	Push-Pull	-65 ░C	150 °C	Male Pin	Phosphor Bronze	2 A	Board Lock Pick and Place	0.049 in	1.25 mm	Solder	0.203 Ám	8 Áin	1.25 mm	0.049 in	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Through Hole	All	Board to Board Cable	7.25 mm 7.35 mm 7.7 mm	Circular	UL94 V-0	Header	0.177 in	4.5 mm	34	Green	4.9 mm	0.193 in	Shrouded - 4 Wall	2
