231I,GY

Active

Serpac

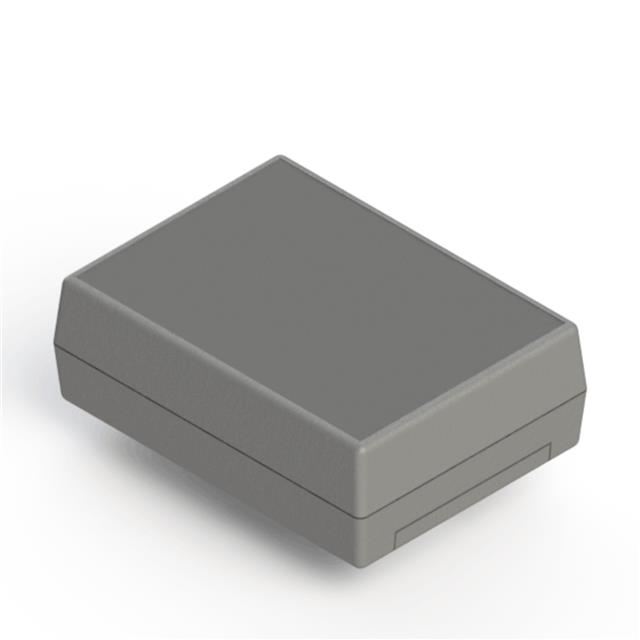

BOX ABS GRAY 4.38"L X 3.25"W

Search across all available documentation for this part.

Documents231

Active

Serpac

BOX ABS GRAY 4.38"L X 3.25"W

Documents231

Technical Specifications

Parameters and characteristics for this part

Specification	231I,GY

Area (L x W)	92 cm˛
Area (L x W)	14.2 in²
Color	Gray
Container Type	Box
Design	Split Sides, Hand Held
Features	Battery Compartment, PCB Supports
Features	9 V
Height [z]	38.1 mm
Height [z]	1.5 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Thickness	2.54 mm
Thickness	0.1 in
Weight	95.25 g
Weight	0.21 lb

Part	Weight	Weight	Ratings	Height [z]	Height [z]	Design	Color	Features	Features	Material Flammability Rating	Container Type	Area (L x W)	Area (L x W)	Thickness	Thickness	Material
Serpac 231I,AL	95.25 g	0.21 lb	IP40 NEMA 1	38.1 mm	1.5 in	Hand Held Split Sides	Almond	Battery Compartment PCB Supports	9 V	UL94 HB	Box	14.2 in²	92 cm˛	2.54 mm	0.1 in	Plastic ABS
Serpac 231I,GY	95.25 g	0.21 lb	IP40 NEMA 1	38.1 mm	1.5 in	Hand Held Split Sides	Gray	Battery Compartment PCB Supports	9 V	UL94 HB	Box	14.2 in²	92 cm˛	2.54 mm	0.1 in	Plastic ABS
Serpac 231IEMI,BK	95.25 g	0.21 lb	IP40	38.1 mm	1.5 in	Hand Held Split Sides	Black	9V Battery Compartment EMI Shielded PCB Supports			Box	14.2 in²	92 cm˛	2.54 mm	0.1 in	ABS EMI Plastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.68

General part information

Box Plastic, ABS Gray Hand Held, Split Sides 4.380" L x 3.250" W (111.25mm x 82.55mm) X 1.500" (38.10mm)
