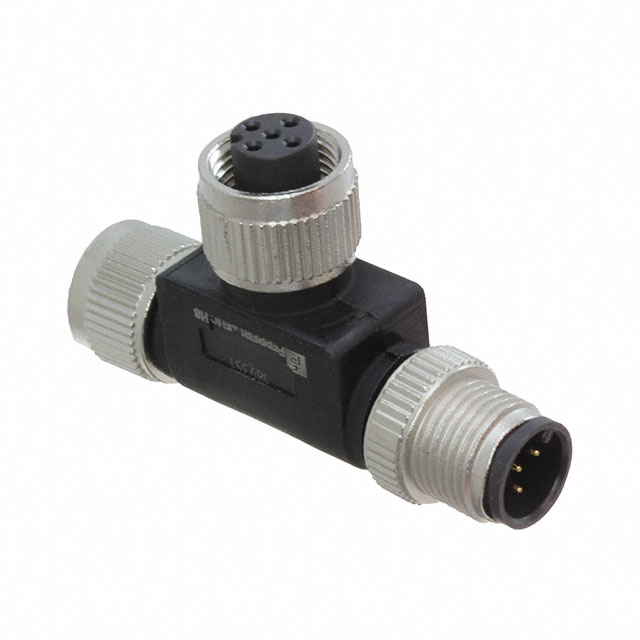

V15S-TEE-V15
ActivePEPPERL+FUCHS
CONN T-ADPT 5P-5/5P F-F/M INLINE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | V15S-TEE-V15 |
|---|---|
| Connector Style | Distributor T-Shaped |
| Convert From (Adapter End) | Female Sockets |
| Convert To (Adapter End) | Female Sockets (1), Male Pins (1) |
| Current Rating (Amps) | 4 A |
| Features | Coupling Nut |
| Housing Color | Green |
| Housing Material | Thermoplastic Polyurethane (TPU) |
| Ingress Protection | IP67, IP65 |
| Material Flammability Rating | UL94 HB |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions (Convert From) | 5 |
| Number of Positions (Convert To) | 5 |
| Number of Positions (Convert To) | 2 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -25 °C |
| Orientation (Convert From) | A |
| Orientation (Convert To) | A |
| Shell Size - Insert (Convert From) | M12 |
| Shell Size - Insert (Convert To) [custom] | M12 |
| Shielding | Unshielded |
| Voltage Rating | 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 39.97 | |
| 10 | $ 35.00 | |||
| 25 | $ 33.49 | |||
| 50 | $ 32.41 | |||
| 100 | $ 31.33 | |||
| 250 | $ 29.60 | |||
Description
General part information
V15S-TE Series
Circular Connector Distributor T-Shaped 5/5 (2) Female Sockets/Female Sockets (1), Male Pins (1) Free Hanging (In-Line)
