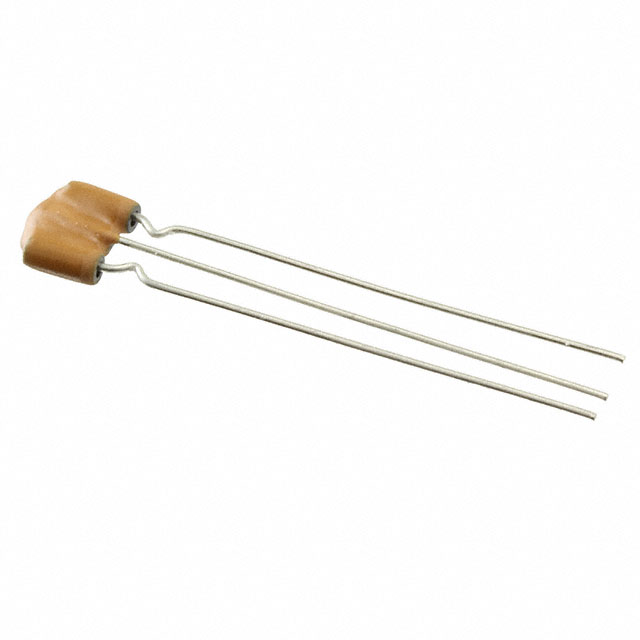

VFS6VD81E221T51B

Obsolete

Murata Power Solutions Inc.

FILTER LC(T) 220PF TH

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

FILTER LC(T) 220PF TH

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Rated	Technology	Number of Channels	Filter Order	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	ESD Protection	Type	Values	Current	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Height [z]	Height [z]	Applications
Murata Power Solutions Inc. VFS6VD81E221T51B	25 VDC	LC (T-Type)	1	3	2.54 mm	0.1 in	8 mm	0.315 "	Through Hole		Low Pass	220 pF	6 A	3-SIP	-40 °C	105 ░C	10.5 mm	0.413 "	General Purpose

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LC (T-Type) EMI Filter 3rd Order Low Pass 1 Channel C = 220pF 6 A 3-SIP

Technical documentation and resources

No documents available
