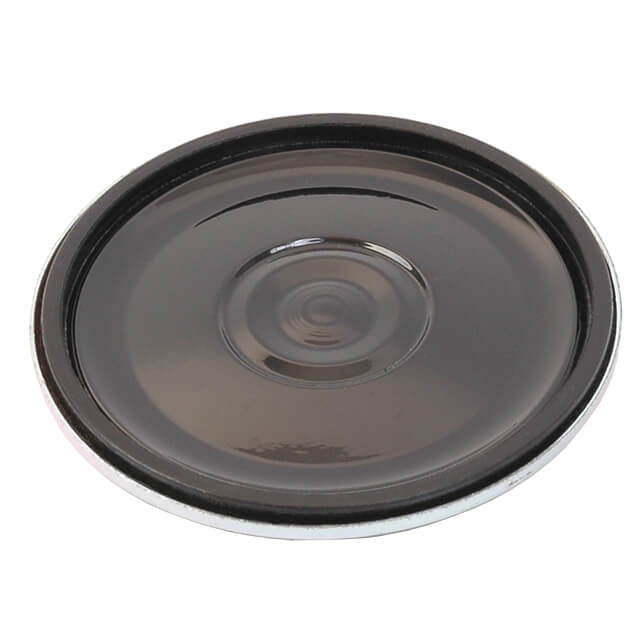

CLS0362MA-1 - CLS0362MA-1

CLS0362MA-1

Active
CUI Devices

SPEAKER 8OHM 500MW TOP PORT 89DB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
CLS0362MA-1 - CLS0362MA-1

CLS0362MA-1

Active
CUI Devices

SPEAKER 8OHM 500MW TOP PORT 89DB

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationCLS0362MA-1
Efficiency - dBA89 dBA
Efficiency - Testing500mW/500mm
Efficiency - TypeSound Pressure Level (SPL)
Frequency - Self Resonant550 Hz
Frequency Range [Max]6 kHz
Frequency Range [Min]550 Hz
Height - Seated (Max) [Max] [z]0.197 in
Height - Seated (Max) [Max] [z]5 mm
Impedance8 Ohms
Material - ConePolyester, Polyethylene Terephthalate (PET)
Material - MagnetNd-Fe-B
Port LocationTop
Power - Max [Max]1 W
Power - Rated500 mW
ShapeRound
Size / Dimension [diameter]1.417 in
Size / Dimension [diameter]36 mm
TechnologyMagnetic
TerminationSolder Pads
TypeLow Profile

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 3.11
1$ 3.11
10$ 2.53
10$ 2.53
25$ 2.33
25$ 2.33
50$ 2.20
50$ 2.20
100$ 2.06
100$ 2.06
250$ 1.90
250$ 1.90
450$ 1.81
450$ 1.81
500$ 1.79
500$ 1.79
1000$ 1.72
1000$ 1.72

Description

General part information

CLS0362 Series

8 Ohms Low Profile Speaker 500 mW 550 Hz ~ 6 kHz Top Round
