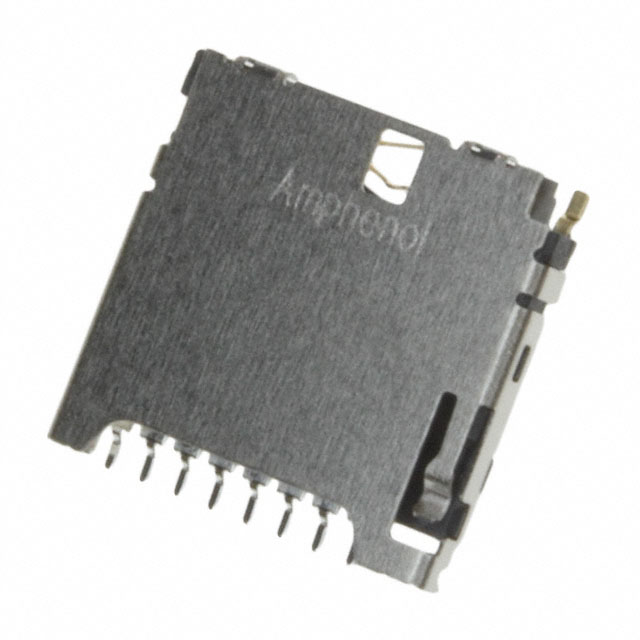

114-00841-68
ActiveAmphenol ICC (Commercial Products)
CONN MICRO SD CARD PUSH-PULL R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
114-00841-68
ActiveAmphenol ICC (Commercial Products)
CONN MICRO SD CARD PUSH-PULL R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 114-00841-68 |
|---|---|
| Card Type | Secure Digital - microSD™ |
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Finish Thickness | 0.38 µm |
| Features | Switch |
| Height Above Board [z] | 0.061 " |
| Height Above Board [z] | 1.55 mm |
| Insertion, Removal Method | Pull Out, Push In |
| Mounting Feature | Normal, Standard - Top |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 10 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.75 | |
| 10 | $ 1.52 | |||
| 25 | $ 1.46 | |||
| 50 | $ 1.43 | |||
| 100 | $ 1.36 | |||
| 250 | $ 1.23 | |||
| 500 | $ 1.14 | |||
| Digi-Reel® | 1 | $ 1.75 | ||
| 10 | $ 1.52 | |||
| 25 | $ 1.46 | |||
| 50 | $ 1.43 | |||
| 100 | $ 1.36 | |||
| 250 | $ 1.23 | |||
| 500 | $ 1.14 | |||
| Tape & Reel (TR) | 1500 | $ 0.94 | ||
| 3000 | $ 0.91 | |||
| 7500 | $ 0.86 | |||
| 10500 | $ 0.84 | |||
Description
General part information
114-00841 Series
10 (8 + 2) Position Card Connector Secure Digital - microSD™ Surface Mount, Right Angle Gold
