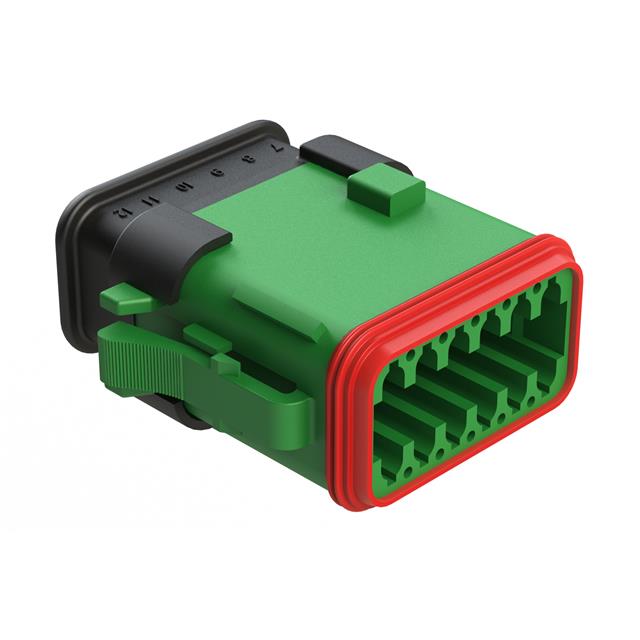

AT06-12SC-SRGN

Active

Amphenol Sine Systems Corp

CONN PLUG HSG 12POS 14-20AWG

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN PLUG HSG 12POS 14-20AWG

Technical Specifications

Parameters and characteristics for this part

Specification	AT06-12SC-SRGN

Color	Green
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Sealed, Strain Relief, Cap (Cover)
Insulation Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	12
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

Part	Fastening Type	Number of Positions	Note	Connector Type	Color	Contact Type	Insulation Material	Mounting Type	Contact Termination	Features	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	For Use With/Related Products	Accessory Type
Amphenol Sine Systems Corp AT06-12SC-SR2GN	Latch Lock	12	Contacts Not Included	Plug	Green	Female Socket	Thermoplastic	Free Hanging (In-Line)	Crimp	Cap (Cover) Sealed Strain Relief	2	-55 °C	125 °C
Amphenol Sine Systems Corp AT06-12SC-RD01	Latch Lock	12	Contacts Not Included	Plug	Green	Female Socket	Thermoplastic	Free Hanging (In-Line)	Crimp	Sealed	2	-55 °C	125 °C
Amphenol Sine Systems Corp AT06-12SC-OMGRN	Latch Lock	12	Contacts Not Included	Plug	Green	Female Socket	Polyamide (PA66) Nylon 6/6 Glass Filled	Free Hanging (In-Line)	Crimp	IP67	2	-55 °C	125 °C
Amphenol Sine Systems Corp AT06-12SC-OMRDGRN	Latch Lock	12		Plug	Green	Female Socket	Polyamide (PA66) Nylon 6/6 Glass Filled	Free Hanging (In-Line)	Crimp	Sealed	2	-55 °C	125 °C
Amphenol Sine Systems Corp AT06-12SC-SS01	Latch Lock	12	Contacts Not Included	Plug	Green	Female Socket	Thermoplastic	Free Hanging (In-Line)	Crimp		2	-55 °C	125 °C
Amphenol Sine Systems Corp AT06-12SC-SRGN	Latch Lock	12	Contacts Not Included	Plug	Green	Female Socket	Thermoplastic	Free Hanging (In-Line)	Crimp	Cap (Cover) Sealed Strain Relief	2	-55 °C	125 °C
Amphenol Sine Systems Corp AT06-12S-CAP		12								IP67				AT Series™	Cap (Cover) Protective

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Rectangular Connectors - Housings Plug Green
