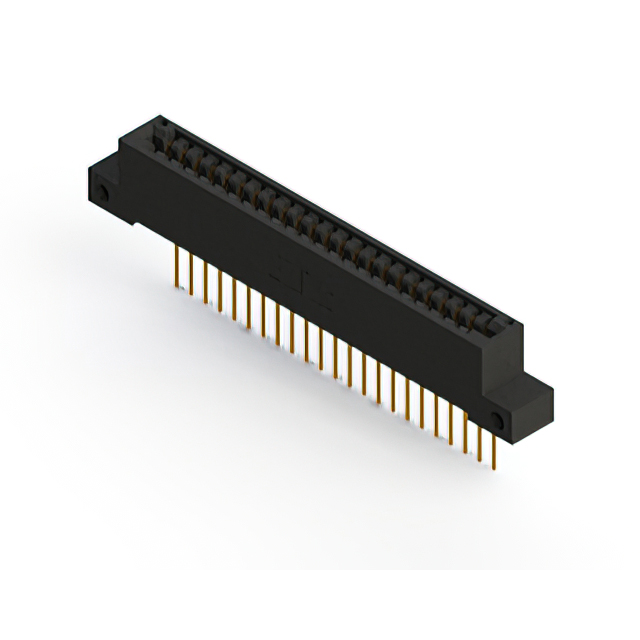

896-023-541-112
ActiveEDAC Inc.
CONN EDGE SGL FMALE 23POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
896-023-541-112
ActiveEDAC Inc.
CONN EDGE SGL FMALE 23POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 896-023-541-112 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Unthreaded, Flush Mount, Side Opening |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 23 |
| Number of Positions/Bay/Row [custom] | 23 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
896-023 Series
| Part | Termination | Contact Finish | Number of Rows | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Read Out | Gender | Termination Rows | Color | Material - Insulation | Contact Type | Card Type | Pitch [x] | Pitch [x] | Number of Positions | Number of Positions/Bay/Row [custom] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Solder | Gold | 1 | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 10 Áin | 0.25 Ám | Through Hole Right Angle | 125 °C | -40 °C | Copper Alloy | Single | Female | 1 | Black | Polyphenylene Sulfide (PPS) | Cantilever | Non Specified - Single Edge | 0.125 in | 3.18 mm | 23 | 23 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | ||
EDAC Inc. | Solder | Gold | 1 | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 10 Áin | 0.25 Ám | Through Hole | 125 °C | -40 °C | Copper Alloy | Single | Female | 1 | Black | Polyphenylene Sulfide (PPS) | Cantilever | Non Specified - Single Edge | 0.125 in | 3.18 mm | 23 | 23 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | ||
EDAC Inc. | Solder | Gold | 1 | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | 10 Áin | 0.25 Ám | Through Hole Right Angle | 125 °C | -40 °C | Copper Alloy | Single | Female | 1 | Black | Polyphenylene Sulfide (PPS) | Cantilever | Non Specified - Single Edge | 0.125 in | 3.18 mm | 23 | 23 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | ||
EDAC Inc. | Solder Eyelet(s) | Gold | 1 | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | 10 Áin | 0.25 Ám | Through Hole | 125 °C | -40 °C | Copper Alloy | Single | Female | 1 | Black | Polyphenylene Sulfide (PPS) | Cantilever | Non Specified - Single Edge | 0.125 in | 3.18 mm | 23 | 23 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | ||
EDAC Inc. | Wire Wrap | Gold | 1 | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | 10 Áin | 0.25 Ám | Through Hole | 125 °C | -40 °C | Copper Alloy | Single | Female | 1 | Black | Polyphenylene Sulfide (PPS) | Cantilever | Non Specified - Single Edge | 0.125 in | 3.18 mm | 23 | 23 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | ||
EDAC Inc. | Wire Wrap | Gold | 1 | Flush Mount M3 Threaded Insert Top Opening | 10 Áin | 0.25 Ám | Through Hole | 125 °C | -40 °C | Copper Alloy | Single | Female | 1 | Black | Polyphenylene Sulfide (PPS) | Cantilever | Non Specified - Single Edge | 0.125 in | 3.18 mm | 23 | 23 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | ||||
EDAC Inc. | Solder Eyelet(s) | Gold | 1 | 10 Áin | 0.25 Ám | Through Hole | 125 °C | -40 °C | Copper Alloy | Single | Female | 1 | Black | Polyphenylene Sulfide (PPS) | Cantilever | Non Specified - Single Edge | 0.125 in | 3.18 mm | 23 | 23 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | 0.128 in | |||
EDAC Inc. | Wire Wrap | Gold | 1 | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | 10 Áin | 0.25 Ám | Through Hole | 125 °C | -40 °C | Copper Alloy | Single | Female | 1 | Black | Polyphenylene Sulfide (PPS) | Cantilever | Non Specified - Single Edge | 0.125 in | 3.18 mm | 23 | 23 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | ||
EDAC Inc. | Solder | Gold | 1 | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | 10 Áin | 0.25 Ám | Through Hole Right Angle | 125 °C | -40 °C | Copper Alloy | Single | Female | 1 | Black | Polyphenylene Sulfide (PPS) | Cantilever | Non Specified - Single Edge | 0.125 in | 3.18 mm | 23 | 23 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | ||
EDAC Inc. | Solder | Gold | 1 | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | 10 Áin | 0.25 Ám | Through Hole Right Angle | 125 °C | -40 °C | Copper Alloy | Single | Female | 1 | Black | Polyphenylene Sulfide (PPS) | Cantilever | Non Specified - Single Edge | 0.125 in | 3.18 mm | 23 | 23 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
896-023 Series
23 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Black
