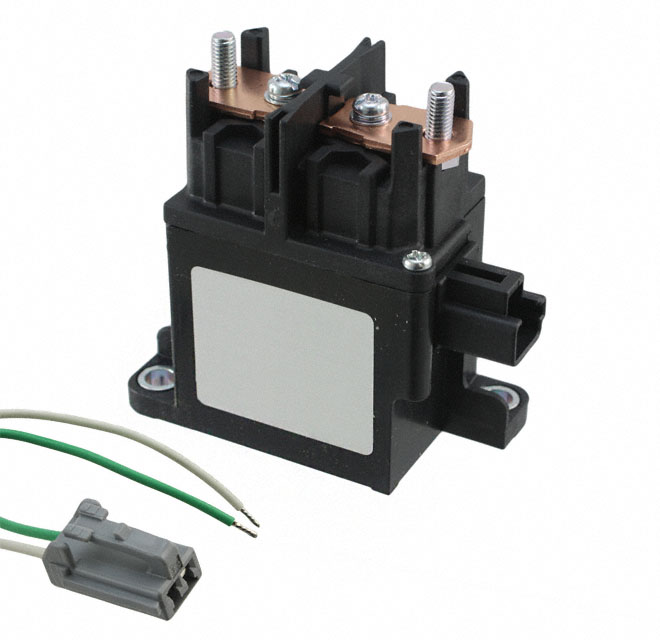

AEV18012W
ActivePanasonic Electric Works
RELAY AUTOMOTIVE SPST 80A 12V
Deep-Dive with AI
Search across all available documentation for this part.
AEV18012W
ActivePanasonic Electric Works
RELAY AUTOMOTIVE SPST 80A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AEV18012W |
|---|---|
| Coil Current | 353 mA |
| Coil Power | 4.2 W |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 80 A |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1 VDC |
| Operate Time | 50 ms |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 30 ms |
| Switching Voltage | 450 VDC |
| Termination Style | Stud |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 166.48 | |
| 10 | $ 156.07 | |||
| 25 | $ 145.67 | |||
| 40 | $ 140.47 | |||
Description
General part information
AEV18012 Series
RELAY AUTOMOTIVE SPST 80A 12V
