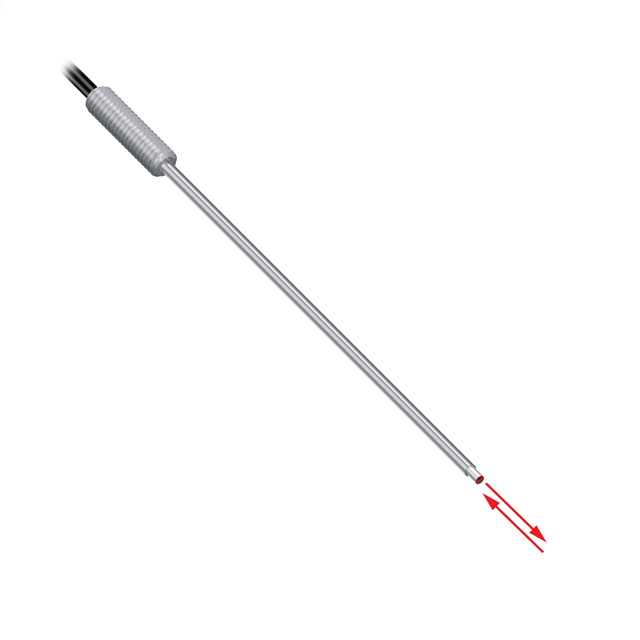

Q10AN6R

Active

BANNER ENGINEERING

Q10 SERIES: RECEIVERRANGE: 1

Search across all available documentation for this part.

Active

BANNER ENGINEERING

Q10 SERIES: RECEIVERRANGE: 1

Technical Specifications

Parameters and characteristics for this part

Part	Output Configuration	Cable Length	Cable Length	Ingress Protection	Response Time	Sensing Distance	Sensing Distance	Sensing Method	Connection Method	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Light Source
BANNER ENGINEERING Q10AN6R	NPN - Light-ON	78.74 in	2 m	NEMA 6P IEC IP67	8 ms	70.866 "	1.8 m	Through-Beam	Cable	-40 °C	70 °C	30 VDC	10 VDC	Infrared
BANNER ENGINEERING Q10AN6RQ	NPN - Light-ON			NEMA 6P IEC IP67	8 ms	70.866 "	1.8 m	Through-Beam	Connector	-40 °C	70 °C	30 VDC	10 VDC	Infrared
BANNER ENGINEERING Q10AN6DQ	NPN - Light-ON			IP67	3 ms	19.685 in	50 cm	Diffuse	Connector	-40 °C	70 °C	30 VDC	10 VDC	Infrared

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 82.00
Newark	Each	1	$ 84.00

General part information

Through-Beam Optical Sensor 70.866" (1.8m) NPN - Light-ON

Technical documentation and resources
