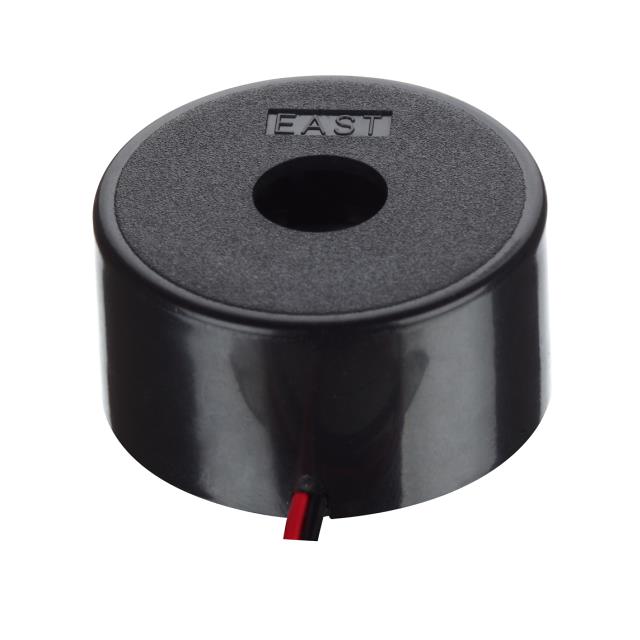

EFM-620LA

Active

East Electronics

BUZZER PIEZO 9V 40MM TH

Search across all available documentation for this part.

Active

East Electronics

BUZZER PIEZO 9V 40MM TH

Technical Specifications

Parameters and characteristics for this part

Specification	EFM-620LA

Current - Supply	50 mA
Driver Circuitry	Internally Driven, Indicator
Frequency	3.2 kHz
Height - Seated (Max) [Max] [z]	20 mm
Height - Seated (Max) [Max] [z]	0.787 "
Input Type	DC
Mounting Type	Through Hole
Operating Mode	Single Tone
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Port Location	Top
Size / Dimension [diameter]	1.575 "
Size / Dimension [diameter]	40 mm
Sound Pressure Level (SPL)	110.46 dB
Technology	Piezo
Termination	PC Pins
Voltage - Rated	9 V
Voltage Range [Max]	20 V
Voltage Range [Min]	7 V

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage Range [Min]	Voltage Range [Max]	Technology	Mounting Type	Sound Pressure Level (SPL)	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Port Location	Input Type	Driver Circuitry	Operating Mode	Current - Supply	Voltage - Rated	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Frequency
East Electronics EFM-620LA	1.575 "	40 mm	7 V	20 V	Piezo	Through Hole	110.46 dB	PC Pins	-20 C	60 °C	Top	DC	Indicator Internally Driven	Single Tone	50 mA	9 V	20 mm	0.787 "	3.2 kHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Buzzers Indicator, Internally Driven Piezo 9 V 50mA 3.2kHz 110.46dB @ 9V, 30cm Through Hole PC Pins
