PEH200MD5100MB2

Active

KEMET

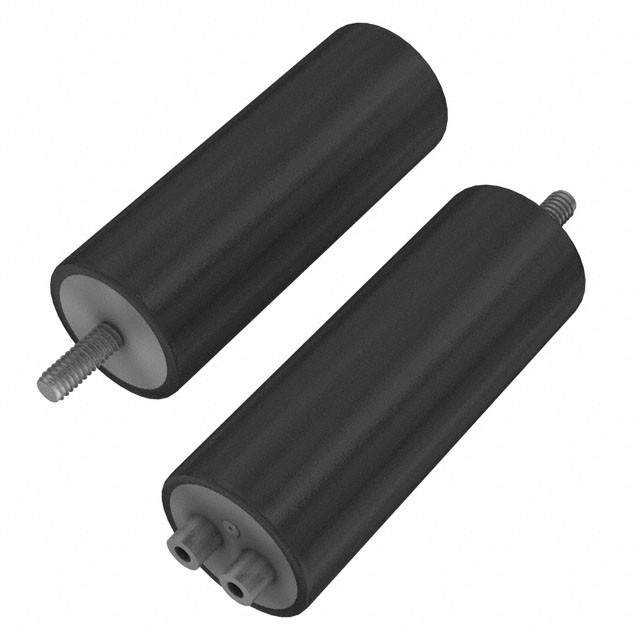

ELECTROLYTIC CAPACITOR, LONG LIFE, PEH200 SERIES, 10000 F, 20%, 63 V, 35 MM, 0.015 OHM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPEH200MD5100MB2 Spec Datasheet +1

PEH200MD5100MB2

Active

KEMET

ELECTROLYTIC CAPACITOR, LONG LIFE, PEH200 SERIES, 10000 F, 20%, 63 V, 35 MM, 0.015 OHM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsPEH200MD5100MB2 Spec Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PEH200MD5100MB2

Applications	General Purpose
Capacitance	10000 µF
ESR (Equivalent Series Resistance)	15 mOhm
Height - Seated (Max) [Max] [z]	95.5 mm
Height - Seated (Max) [Max] [z]	3.76 in
Impedance	10 mOhms
Lead Spacing	13 mm
Lead Spacing	0.512 in
Lifetime @ Temp.	10000 Hrs
Mounting Type	Chassis Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can - Screw Terminals
Polarization	Polar
Ripple Current @ Low Frequency	13.6 A
Size / Dimension [diameter]	1.441 in
Size / Dimension [diameter]	36.6 mm
Tolerance	20 %
Voltage - Rated	63 V

PEH200M Series

Part	Lead Spacing	Lead Spacing	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Rated	Package / Case	Polarization	ESR (Equivalent Series Resistance)	Ripple Current @ Low Frequency	Tolerance	Lifetime @ Temp.	Applications	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Impedance	Capacitance	Ripple Current @ High Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET PEH200MJ5220MB2	0.866 in	22 mm	85 °C	-40 °C	Chassis Mount	63 V	Radial Can - Screw Terminals	Polar	10 mOhm	19 A	20 %	12000 Hrs	General Purpose	51.6 mm	2.032 "	3.799 "	96.5 mm	8 mOhms	22000 µF
KEMET PEH200MC4680MU2	0.512 in	13 mm	85 °C	-40 °C	Chassis Mount	63 V	Radial Can - Screw Terminals	Polar	21 mOhm	11.5 A	20 %	10000 Hrs	General Purpose	36.6 mm	1.441 in	2.894 in	73.5 mm		6800 µF	23.5 A
KEMET PEH200MO5330MB2	1.122 in	28.5 mm	85 °C	-40 °C	Chassis Mount	63 V	Radial Can - Screw Terminals	Polar	10 mOhm	22.8 A	20 %	15000 Hrs	General Purpose	66.6 mm	2.622 in				33000 µF	34.8 A	107 mm	4.213 in
KEMET PEH200MA4470MB2	0.512 in	13 mm	85 °C	-40 °C	Chassis Mount	63 V	Radial Can - Screw Terminals	Polar	32 mOhm	9 A	20 %	10000 Hrs	General Purpose	36.6 mm	1.441 in	2.067 in	52.5 mm	21 mOhms	4700 µF
KEMET PEH200MJ5220MU2	1.122 in	28.5 mm	85 °C	-40 °C	Chassis Mount	63 V	Radial Can - Screw Terminals	Polar	10 mOhm	19 A	20 %	12000 Hrs	General Purpose	51.6 mm	2.031 in	3.76 in	95.5 mm		22000 µF	30.9 A
KEMET PEH200MD5100MB2	0.512 in	13 mm	85 °C	-40 °C	Chassis Mount	63 V	Radial Can - Screw Terminals	Polar	15 mOhm	13.6 A	20 %	10000 Hrs	General Purpose	36.6 mm	1.441 in	3.76 in	95.5 mm	10 mOhms	10000 µF
KEMET PEH200MD5100MU2	0.512 in	13 mm	85 °C	-40 °C	Chassis Mount	63 V	Radial Can - Screw Terminals	Polar	15 mOhm	13.6 A	20 %	10000 Hrs	General Purpose	36.6 mm	1.441 in	3.72 in	94.5 mm		10000 µF	27 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 22.60
Newark	Each	1	$ 32.98
		5	$ 31.61
		10	$ 30.22
		25	$ 27.96
		50	$ 25.68
		100	$ 23.50
		250	$ 23.37

Description

General part information

PEH200M Series

10000 µF 63 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 15mOhm @ 100Hz 10000 Hrs @ 85°C
