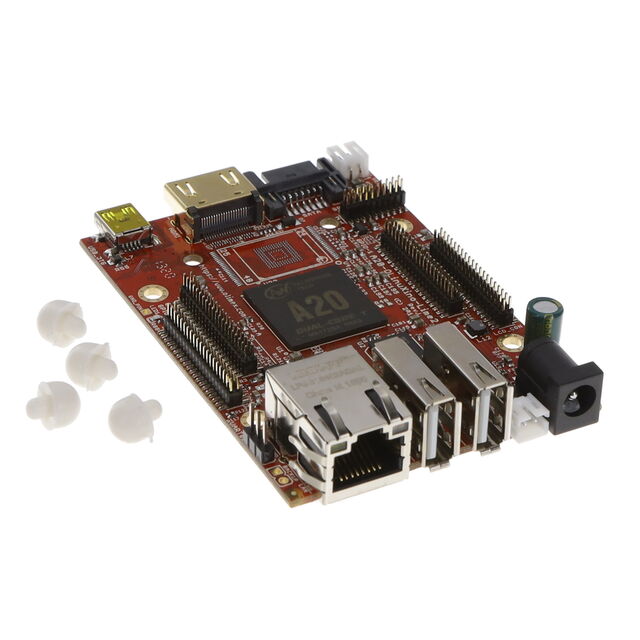

A20-OLINUXINO-LIME2-S16M

Active

Olimex LTD

SBC 1.0GHZ 2 CORE 1GB/0GB RAM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A20-OLINUXINO-LIME2-S16M

Active

Olimex LTD

SBC 1.0GHZ 2 CORE 1GB/0GB RAM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A20-OLINUXINO-LIME2-S16M

Core Processor	ARM Cortex-A7
Ethernet	GbE (1)
Expansion Site/Bus	SATA, UART, SPI, GPIO, microSD
Number of Cores	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
RAM Capacity/Installed	0 GB, 1 GB
Size / Dimension [x]	84 mm
Size / Dimension [x]	3.307 in
Size / Dimension [y]	2.362 in
Size / Dimension [y]	60 mm
Speed	1 GHz
Storage Interface	SPI, SATA, NAND - Flash, microSD
USB	2 PHY, 1
Video Outputs	HDMI
Watchdog Timer	False

A20-OLINUXINO Series

Part	Expansion Site/Bus	Core Processor	RAM Capacity/Installed	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Number of Cores	Speed	USB	Video Outputs	Storage Interface	Ethernet [Min]	Ethernet	Ethernet [Max]	Contents	Operating Temperature [Max]	Operating Temperature [Min]	USB
Olimex LTD A20-OLINUXINO-MICRO-E4GS16M	Audio GPIO microSD SATA SPI UART	ARM Cortex-A7	0 GB 1 GB	3.25 "	5.6 "	142.24 mm	82.55 mm	2	1 GHz	1 2 PHY	HDMI VGA	eMMC Flash microSD SATA HDD	100 Mbps	1	1000 Mbps	HDMI Cable	85 °C	-40 °C
Olimex LTD A20-OLINUXINO-MICRO-S16M	Audio GPIO microSD SATA SPI UART	ARM Cortex-A7	0 GB 1 GB	3.25 "	5.6 "	142.24 mm	82.55 mm	2	1 GHz	1 2 PHY	HDMI VGA	microSD SATA HDD	100 Mbps	1	1000 Mbps	HDMI Cable	85 °C	-40 °C
Olimex LTD A64-OLINUXINO-2GE16G-IND	GPIO microSD MIPI CSI MIPI DSI SPI UART	ARM Cortex-A53	0 GB 2 GB	2.5 in	3.5 in	88.9 mm	63.5 mm	4	1.2 GHz		HDMI MIPI-CSI MIPI-DSI	eMMC microSD SPI		10 Mbps 100 Mbps 1000 Mbps GbE			85 °C	-40 °C	Micro USB (1) USB OTG (1) USB Type-A (1)
Olimex LTD A64-OLINUXINO-1G	Audio GPIO microSD SPI UART	ARM Cortex-A53	0 GB 1 GB	2.461 in	3.543 "	90 mm	62.5 mm	4	1.2 GHz		HDMI LCD MIPI-DSI	microSD		10 Mbps 100 Mbps 1000 Mbps GbE			85 °C	-40 °C	Micro USB (1) USB OTG (1) USB Type-A (1)
Olimex LTD A64-OLINUXINO-1GE16GW	Audio GPIO microSD SPI UART	ARM Cortex-A53	0 GB 1 GB	2.461 in	3.543 "	90 mm	62.5 mm	4	1.2 GHz		HDMI LCD MIPI-DSI	eMMC Flash microSD		10 Mbps 100 Mbps 1000 Mbps GbE			85 °C	-40 °C	Micro USB (1) USB OTG (1) USB Type-A (1)
Olimex LTD A64-OLINUXINO-1GE16GW-EA	Audio GPIO microSD SPI UART	ARM Cortex-A53	0 GB 1 GB	2.461 in	3.543 "	90 mm	62.5 mm	4	1.2 GHz		HDMI LCD MIPI-DSI	eMMC Flash microSD		10 Mbps 100 Mbps 1000 Mbps GbE			85 °C	-40 °C	Micro USB (1) USB OTG (1) USB Type-A (1)
Olimex LTD A20-OLINUXINO-MICRO-N8G	Audio GPIO microSD SATA SPI UART	ARM Cortex-A7	0 GB 1 GB	3.25 "	5.6 "	142.24 mm	82.55 mm	2	1 GHz	1 2 PHY	HDMI VGA	microSD NAND - Flash SATA HDD	100 Mbps	1	1000 Mbps	HDMI Cable	85 °C	-40 °C
Olimex LTD A20-OLINUXINO-LIME-E4GS16M	GPIO microSD SATA SPI UART	ARM Cortex-A7	0 GB 512 MB	2.362 in	3.307 in	84 mm	60 mm	2	1 GHz	1 2 PHY	HDMI	eMMC microSD NAND - Flash SATA	100 Mbps	1	1000 Mbps	HDMI Cable	85 °C	-40 °C
Olimex LTD A20-OLINUXINO-LIME-E16GS16M	GPIO microSD SATA SPI UART	ARM Cortex-A7	0 GB 512 MB	2.362 in	3.307 in	84 mm	60 mm	2	1 GHz	1 2 PHY	HDMI	eMMC microSD NAND - Flash SATA	100 Mbps	1	1000 Mbps	HDMI Cable	85 °C	-40 °C
Olimex LTD A20-OLINUXINO-LIME2-S16M	GPIO microSD SATA SPI UART	ARM Cortex-A7	0 GB 1 GB	2.362 in	3.307 in	84 mm	60 mm	2	1 GHz	1 2 PHY	HDMI	microSD NAND - Flash SATA SPI		GbE (1)			85 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 48.33

Description

General part information

A20-OLINUXINO Series

Single Board Computer 1GHz 2 Core 1GB/0GB RAM ARM Cortex-A7

Documents

Technical documentation and resources
