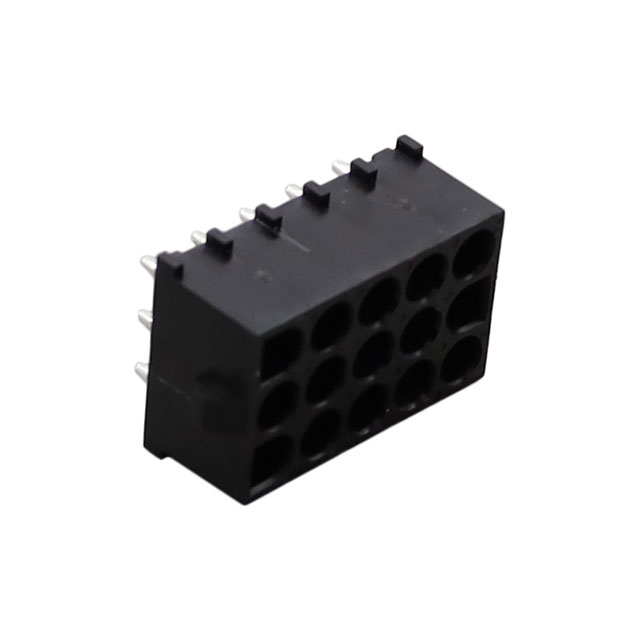

0367590147

Active

Molex

MLX 15CKT ASSLY WITH SOC

Deep-Dive with AI

Search across all available documentation for this part.

0367590147

Active

Molex

MLX 15CKT ASSLY WITH SOC

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0367590147

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3.5 µm
Contact Finish Thickness - Mating	137.8 µin
Contact Finish Thickness - Post	137.8 Áin
Contact Finish Thickness - Post	3.5 Ám
Contact Length - Post	4.32 mm
Contact Length - Post	0.17 in
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	9 A
Fastening Type	Locking Ramp
Insulation Color	Black
Insulation Height	0.55 in
Insulation Height	13.97 mm
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole
Number of Positions	15
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	6.35 mm
Pitch - Mating	0.25 in
Row Spacing - Mating	0.25 in
Row Spacing - Mating	6.35 mm
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	600 V

036759 Series

Part	Number of Positions Loaded	Mounting Type	Number of Rows	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Termination	Applications	Shrouding	Material Flammability Rating	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Contact Finish - Post	Insulation Height	Insulation Height	Number of Positions	Contact Shape	Insulation Color	Contact Type	Connector Type	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Features	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating
Molex 0367590103	All	Through Hole	1	0.169 in	4.3 mm	6.35 mm	0.25 in	Solder	Automotive General Purpose Industrial	Shrouded - 4 Wall	UL94 V-2	Polyamide (PA66) Nylon 6/6	3.5 µm	137.8 µin	Board to Cable/Wire	Tin	0.55 in	13.97 mm	4	Circular	Black	Male Pin	Header	Locking Ramp
Molex 0367590145
Molex 0367590146	All	Through Hole	3	0.169 in	4.3 mm	6.35 mm	0.25 in	Solder	Automotive General Purpose Industrial	Shrouded - 4 Wall	UL94 V-2	Polyamide (PA66) Nylon 6/6	3.5 µm	137.8 µin	Board to Cable/Wire	Tin	0.55 in	13.97 mm	12	Circular	Black	Male Pin	Header	Locking Ramp	0.25 in	6.35 mm
Molex 0367590065	All	Through Hole	3	0.169 in	4.3 mm	6.35 mm	0.25 in	Solder	Automotive General Purpose Industrial	Shrouded - 4 Wall	UL94 V-0	Polybutylene Terephthalate (PBT)	3.5 µm	137.8 µin	Board to Cable/Wire	Tin	0.55 in	13.97 mm	9	Circular	Natural	Male Pin	Header	Locking Ramp	0.25 in	6.35 mm	Board Guide
Molex 0367590063	All	Through Hole	1	0.17 in	4.32 mm	6.35 mm	0.25 in	Solder			UL94 V-2	Polyamide (PA66) Nylon 6/6	3.5 µm	137.8 µin	Board to Cable/Wire	Tin	0.55 in	13.97 mm	4	Circular	Black	Female Socket	Header	Locking Ramp			Board Guide	137.8 Áin	3.5 Ám	Phosphor Bronze	12 A	105 ░C	-55 °C	600 V
Molex 0367590104	All	Through Hole	2	0.169 in	4.3 mm	6.35 mm	0.25 in	Solder	Automotive General Purpose Industrial	Shrouded - 4 Wall	UL94 V-2	Polyamide (PA66) Nylon 6/6	3.5 µm	137.8 µin	Board to Cable/Wire	Tin	0.55 in	13.97 mm	6	Circular	Black	Male Pin	Header	Locking Ramp	0.25 in	6.35 mm
Molex 0367590147	All	Through Hole	3	0.17 in	4.32 mm	6.35 mm	0.25 in	Solder			UL94 V-2	Polyamide (PA66) Nylon 6/6	3.5 µm	137.8 µin	Board to Cable/Wire	Tin	0.55 in	13.97 mm	15	Circular	Black	Female Socket	Header	Locking Ramp	0.25 in	6.35 mm		137.8 Áin	3.5 Ám		9 A	105 ░C	-55 °C	600 V
Molex 0367590144
Molex 0367590061	All	Through Hole	1	0.169 in	4.3 mm	6.35 mm	0.25 in	Solder	Automotive General Purpose Industrial Telecommunications		UL94 V-2	Polyamide (PA66) Nylon 6/6	3.5 µm	137.8 µin	Board to Cable/Wire	Tin	0.55 in	13.97 mm	2	Circular	Black	Female Socket	Header	Locking Ramp			Board Guide	137.8 Áin	3.5 Ám	Phosphor Bronze		105 ░C	-55 °C	600 V
Molex 0367590066	All	Through Hole	3	0.169 in	4.3 mm	6.35 mm	0.25 in	Solder	Automotive General Purpose Industrial Telecommunications		UL94 V-2	Polyamide (PA66) Nylon 6/6	3.5 µm	137.8 µin	Board to Cable/Wire	Tin	0.55 in	13.97 mm	12	Circular	Black	Female Socket	Header	Locking Ramp	0.25 in	6.35 mm	Board Guide	137.8 Áin	3.5 Ám	Phosphor Bronze		105 ░C	-55 °C	600 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 1.31
		10	$ 1.11
		320	$ 0.92
		1280	$ 0.85

Description

General part information

036759 Series

15 Position Header Connector 0.250" (6.35mm) Through Hole Tin
