5P50901NBGI
ActiveRenesas Electronics Corporation
IC CLK GEN SPREAD SPECTRUM 8DFN
Deep-Dive with AI
Search across all available documentation for this part.
5P50901NBGI
ActiveRenesas Electronics Corporation
IC CLK GEN SPREAD SPECTRUM 8DFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5P50901NBGI |
|---|---|
| Differential - Input:Output | False |
| Divider/Multiplier | False |
| Frequency - Max [Max] | 25 MHz |
| Input | Clock |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | Clock |

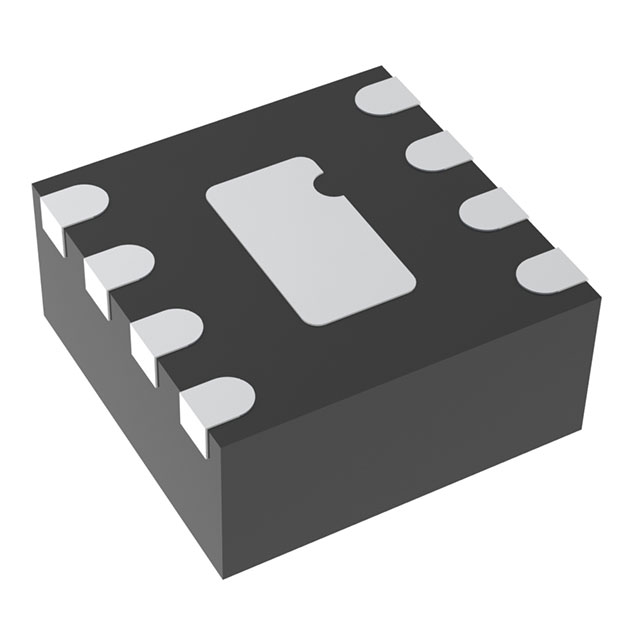

| Package / Case | 8-VFDFN Exposed Pad |
| PLL | True |
| Ratio - Input:Output [custom] | 1:1 |
| Supplier Device Package | 8-DFN (2x2) |
| Voltage - Supply [Max] | 3.63 V |
| Voltage - Supply [Min] | 1.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.32 | |
| 10 | $ 2.98 | |||
| 25 | $ 2.82 | |||
| 100 | $ 2.44 | |||
| 250 | $ 2.32 | |||
| 500 | $ 2.08 | |||
| 1000 | $ 1.75 | |||
| Digi-Reel® | 1 | $ 3.32 | ||
| 10 | $ 2.98 | |||
| 25 | $ 2.82 | |||
| 100 | $ 2.44 | |||
| 250 | $ 2.32 | |||
| 500 | $ 2.08 | |||
| 1000 | $ 1.75 | |||
| Tube | 3000 | $ 1.67 | ||
| 6000 | $ 1.60 | |||
Description
General part information
5P50901 Series
The 5P50901/2/3/4 is a family of 1.8V low-power, spread spectrum clock generators capable of reducing EMI radiation from an input clock. Spread spectrum technique is capable of reducing the harmonic frequency amplitude peaks by several dB.
