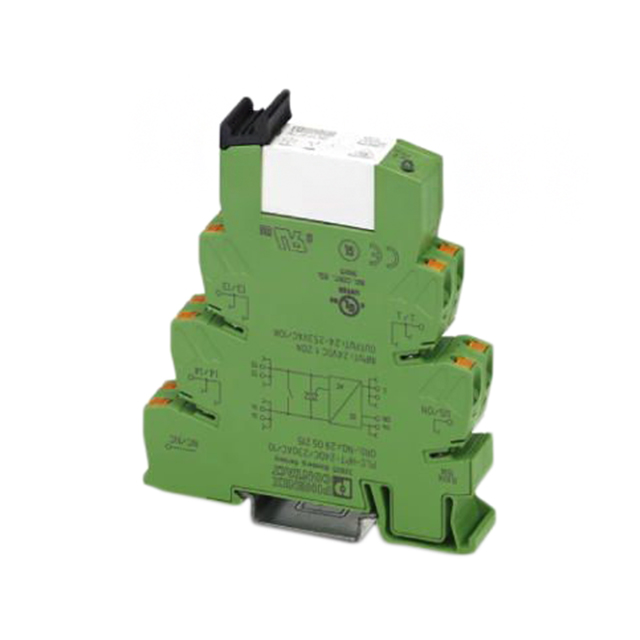

2905215
ActivePhoenix Contact
SSR RELAY SPST-NO 10A 24-253V
Deep-Dive with AI
Search across all available documentation for this part.
2905215
ActivePhoenix Contact
SSR RELAY SPST-NO 10A 24-253V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2905215 |
|---|---|
| Approval Agency | EN, IEC |
| Circuit | Hybrid, SPST-NO (1 Form A) |
| Load Current | 10 A |
| Mounting Type | DIN Rail |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| Output Type | AC |
| Package / Case | Module |
| Termination Style | Spring Terminal |
| Voltage - Input | 24 V |
| Voltage - Load [Max] | 253 V |
| Voltage - Load [Min] | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 95.71 | |
| 10 | $ 88.05 | |||
| 50 | $ 81.35 | |||
| 100 | $ 77.52 | |||
Description
General part information
290521 Series
Solid State SPST-NO (1 Form A), Hybrid Module
