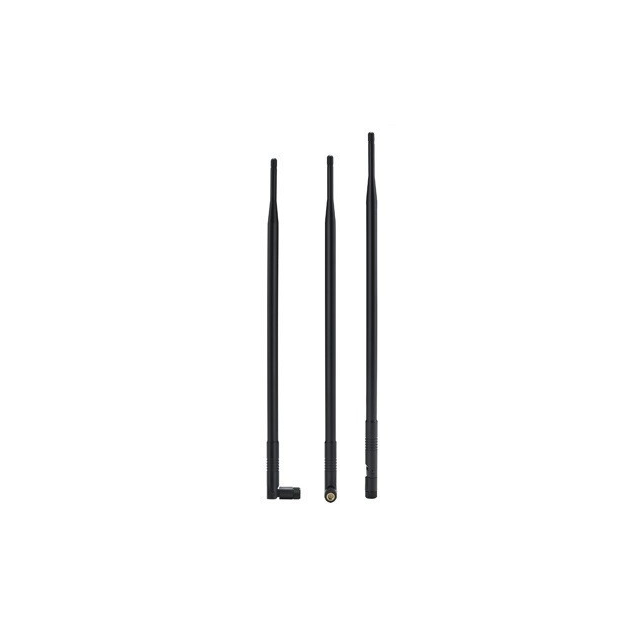

TI.19.2113
ActiveTAOGLAS
WHIP ANTENNA, 902-928MHZ, 2.4DBI
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsTechnical Data Sheet EN
TI.19.2113
ActiveTAOGLAS
WHIP ANTENNA, 902-928MHZ, 2.4DBI
Deep-Dive with AI
DocumentsTechnical Data Sheet EN
Technical Specifications
Parameters and characteristics for this part
| Specification | TI.19.2113 |
|---|---|
| Antenna Type | Tilt, Whip |
| Applications | WLAN |
| Frequency (Center/Band) | 915 MHz |
| Frequency Group [Max] | 1 GHz |
| Frequency Group [Min] | 300 MHz |
| Frequency Range [Max] | 928 MHz |
| Frequency Range [Min] | 902 MHz |
| Gain | 2.5 dBi |
| Height (Max) | 389 mm |
| Height (Max) [Max] | 15.315 in |
| Mounting Type | Connector Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 10 W |
| RF Family/Standard | WiFi |
| VSWR | 1.9 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
TI.19 Series
RF ANTENNA WLAN Whip, Tilt SMA Male Connector Mount
Documents
Technical documentation and resources
