FM4-NCSP-PCB-1

Active

Amphenol RF

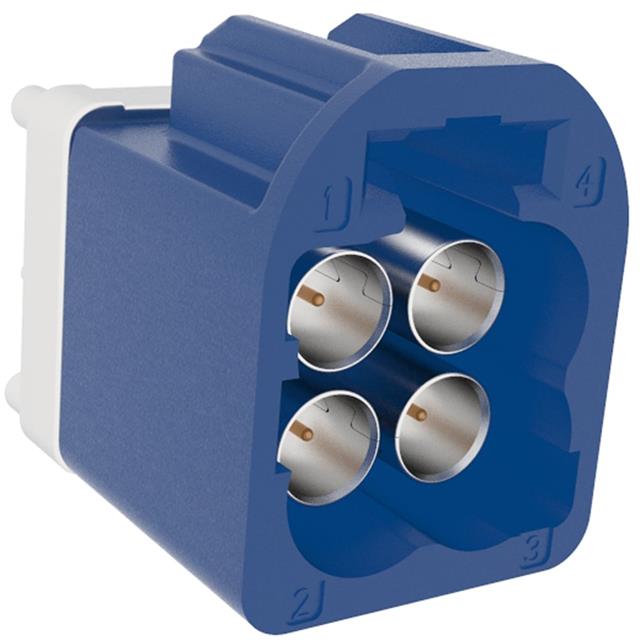

RF CONNECTOR, AUTOMATE, TYPE A MINI-FAKRA, 4 PORT, PCB THROUGH HOLE, STRAIGHT, PLUG, 50 OHM, C CODE

Search across all available documentation for this part.

Active

Amphenol RF

RF CONNECTOR, AUTOMATE, TYPE A MINI-FAKRA, 4 PORT, PCB THROUGH HOLE, STRAIGHT, PLUG, 50 OHM, C CODE

Technical Specifications

Parameters and characteristics for this part

Specification	FM4-NCSP-PCB-1

Body Finish	Tin
Body Material	Zinc Alloy
Center Contact Material	Copper Alloy
Center Contact Plating	Gold
Connector Style	Quadraxial, Miniature Coaxial, Fakra
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Liquid Crystal Polymer (LCP)
Fastening Type	Latch Lock
Features	Code C
Frequency - Max [Max]	9 GHz
Housing Color	Blue, Signal
Impedance	50 Ohms
Mating Cycles	25
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder

Part	Contact Termination	Mounting Type	Center Contact Plating	Mating Cycles	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Features	Shield Termination	Connector Type	Body Finish	Frequency - Max [Max]	Dielectric Material	Connector Style	Body Material	Center Contact Material	Number of Ports	Fastening Type	Housing Color
Amphenol RF FM4-NCSP-PCB-1	Solder	Through Hole	Gold	25	50 Ohms	-40 °C	105 ░C	Code C	Solder	Male Pin Plug	Tin	9 GHz	Liquid Crystal Polymer (LCP)	Fakra Miniature Coaxial Quadraxial	Zinc Alloy	Copper Alloy	1	Latch Lock	Blue Signal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Miniature Coaxial, Fakra, Quadraxial Connector Plug, Male Pin 50 Ohms Through Hole Solder
