TSCREW1032-100
ActiveHammond Manufacturing

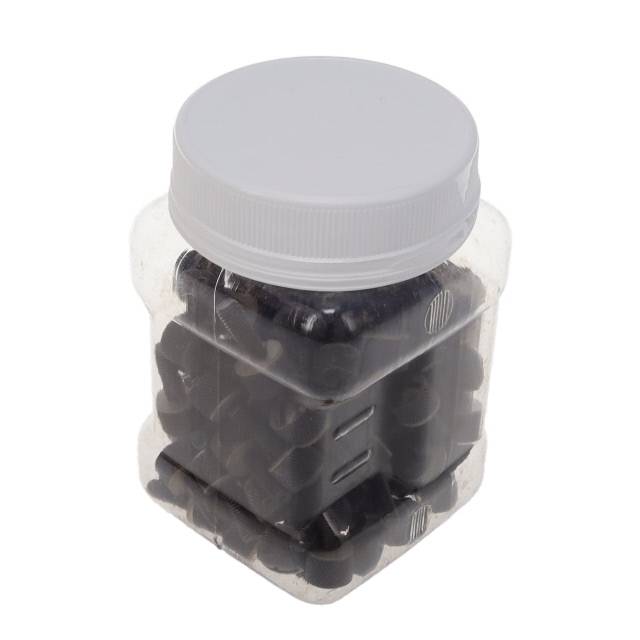

THUMB SCREW 10-32 100/PK
Deep-Dive with AI
Search across all available documentation for this part.
TSCREW1032-100
ActiveHammond Manufacturing
THUMB SCREW 10-32 100/PK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TSCREW1032-100 |
|---|---|
| Drive Type | Combination |
| Features | Washer Included |
| Head Diameter [diameter] | 11.43 mm |
| Head Diameter [diameter] | 0.45 " |
| Head Height | 9.53 mm |
| Head Height | 0.375 " |
| Head Height | 0.375 " |
| Length - Below Head | 0.625 in |
| Length - Below Head | 15.88 mm |
| Length - Below Head | 0.625 in |
| Length - Overall | 25.4 mm |
| Length - Overall | 1 " |
| Plating | Black Oxide |
| Screw Head Type | Pan Head |
| Thread Size | #10-32 |
| Type | Thumb Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 101.05 | |
| 5 | $ 95.10 | |||
| 10 | $ 92.13 | |||
| 25 | $ 83.21 | |||
| 50 | $ 80.24 | |||
| 100 | $ 77.27 | |||
Description
General part information
TSCREW1032 Series
#10-32 Pan Head Thumb Screw Combination Drive Steel
Documents
Technical documentation and resources
No documents available
