MDL65-12SX-W6

Active

ETA-USA

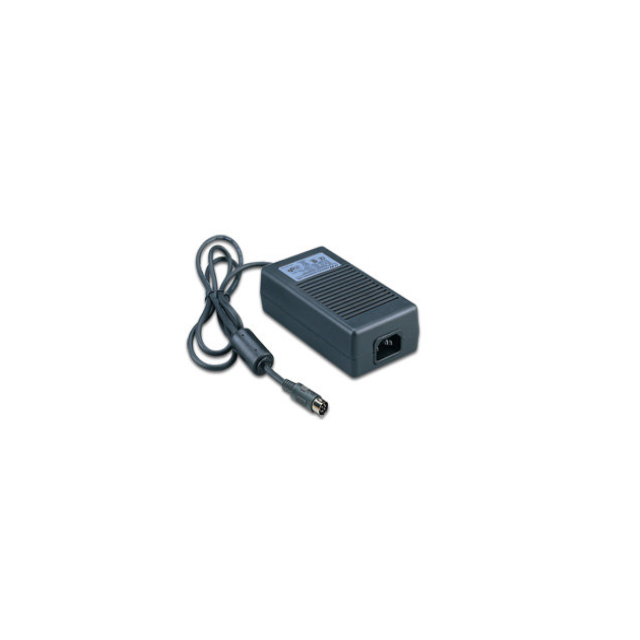

AC/DC DESKTOP ADAPTER 12V 60W

Search across all available documentation for this part.

Active

ETA-USA

AC/DC DESKTOP ADAPTER 12V 60W

Technical Specifications

Parameters and characteristics for this part

Specification	MDL65-12SX-W6

Applications	Medical
Approval Agency	FCC, CE
Cord Length	1 m
Cord Length	39.4 "
Current - Output (Max) [Max]	5 A
Efficiency	CoC Tier 2, Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Output Connector [diameter]	2.5 mm, 5.5 mm
Output Connector [x]	10 mm
Polarization	Positive Center
Power (Watts)	60 W
Region Utilized	International
Size / Dimension [x]	5.2 in
Size / Dimension [x]	132 mm
Size / Dimension [y]	2.72 in
Size / Dimension [y]	69 mm
Size / Dimension [z]	1.57 "
Size / Dimension [z]	40 mm
Standard Number	60601-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V

Part	No Load Power Consumption [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Polarization	Form	Applications	Input Connector	Input Type	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Output Connector [diameter]	Output Connector [x]	Approval Agency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Standard Number	Power (Watts)	Region Utilized	Current - Output (Max) [Max]	Voltage - Output	Cord Length	Cord Length	Output Connector
ETA-USA MDL65-12SX-W6	150 mW	-20 C	60 °C	Positive Center	Desktop (Class I)	Medical	IEC 320-C14	Cord	CoC Tier 2 Level VI	90 VAC	264 VAC	2.5 mm 5.5 mm	10 mm	CE FCC	2.72 in	1.57 "	69 mm	5.2 in	132 mm	40 mm	60601-1	60 W	International	5 A	12 V	1 m	39.4 "
ETA-USA MDL65-24SX-W6	150 mW	-20 C	60 °C	Positive Center	Desktop (Class I)	Medical	IEC 320-C14	Cord	CoC Tier 2 Level VI	90 VAC	264 VAC	2.5 mm 5.5 mm	11 mm	CE FCC	2.72 in	1.57 "	69 mm	5.2 in	132 mm	40 mm	60601-1	65 W	International	2.71 A	24 V	1 m	39.4 "	Barrel Plug
ETA-USA MDL65-28SX-W6	150 mW	-20 C	60 °C	Positive Center	Desktop (Class I)	Medical	IEC 320-C14	Cord	CoC Tier 2 Level VI	90 VAC	264 VAC	2.5 mm 5.5 mm	10 mm	CE FCC	2.72 in	1.57 "	69 mm	5.2 in	132 mm	40 mm	60601-1	65 W	International	2.32 A	28 V	1 m	39.4 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 81.00

General part information

12V 60 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
