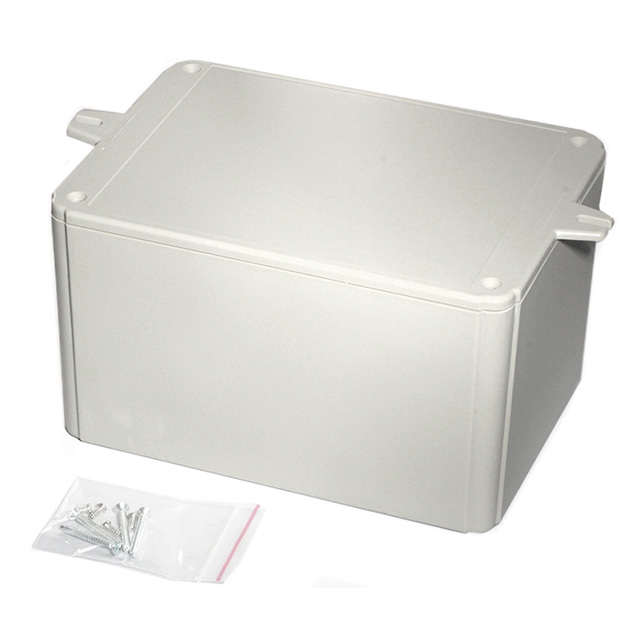

RL6585-F

Active

Hammond Manufacturing

BOX PLASTIC GRAY 6.89"L X 4.92"W

Search across all available documentation for this part.

Active

Hammond Manufacturing

BOX PLASTIC GRAY 6.89"L X 4.92"W

Technical Specifications

Parameters and characteristics for this part

Specification	RL6585-F

Area (L x W)	33.9 in˛
Area (L x W)	219 cm˛
Color	Gray
Container Type	Box
Design	Cover Included
Features	Mounting Flange, PCB Supports
Height [z]	100 mm
Height [z]	3.937 in
Material	ABS
Ratings	IP54
Size / Dimension [x]	6.89 in
Size / Dimension [x]	175.01 mm
Size / Dimension [y]	4.921 "
Size / Dimension [y]	124.99 mm
Thickness	0.124 in
Thickness	3.15 mm
Weight	453.59 g
Weight	1 lbs

Part	Container Type	Weight	Weight	Color	Area (L x W)	Area (L x W)	Design	Thickness	Thickness	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Height [z]	Height [z]	Ratings	Material
Hammond Manufacturing RL6585-F	Box	453.59 g	1 lbs	Gray	33.9 in˛	219 cm˛	Cover Included	0.124 in	3.15 mm	Mounting Flange PCB Supports	4.921 "	6.89 in	175.01 mm	124.99 mm	100 mm	3.937 in	IP54	ABS

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box ABS Gray Cover Included 6.890" L x 4.921" W (175.01mm x 124.99mm) X 3.937" (100.00mm)

Technical documentation and resources

No documents available
