SF400-414505

Active

CUI Devices

THERM PAD 41X45MM GRAY 1SHT=45PC

Search across all available documentation for this part.

Active

CUI Devices

THERM PAD 41X45MM GRAY 1SHT=45PC

Technical Specifications

Parameters and characteristics for this part

Part	Shape	Color	Adhesive	Thickness	Thickness	Thermal Conductivity	Outline [y]	Outline [x]
CUI Devices SF400-101005	Square	Gray	Tacky - Both Sides	0.0197 in	0.5 mm	2.5 W/m-K	10 mm	10 mm
CUI Devices SF400-505005	Square	Gray	Tacky - Both Sides	0.0197 in	0.5 mm	2.5 W/m-K	50 mm	50 mm
CUI Devices SF400-153005	Rectangular	Gray	Tacky - Both Sides	0.0197 in	0.5 mm	2.5 W/m-K	30 mm	15 mm
CUI Devices SF400-301205	Rectangular	Gray	Tacky - Both Sides	0.0197 in	0.5 mm	2.5 W/m-K	12 mm	30 mm
CUI Devices SF400-204005	Rectangular	Gray	Tacky - Both Sides	0.0197 in	0.5 mm	2.5 W/m-K	40 mm	20 mm
CUI Devices SF400-414505	Rectangular	Gray	Tacky - Both Sides	0.0197 in	0.5 mm	2.5 W/m-K	45 mm	41 mm
CUI Devices SF400-202005	Square	Gray	Tacky - Both Sides	0.0197 in	0.5 mm	2.5 W/m-K	20 mm	20 mm
CUI Devices SF400-303005	Square	Gray	Tacky - Both Sides	0.0197 in	0.5 mm	2.5 W/m-K	30 mm	30 mm
CUI Devices SF400-313005	Rectangular	Gray	Tacky - Both Sides	0.0197 in	0.5 mm	2.5 W/m-K	30 mm	31 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

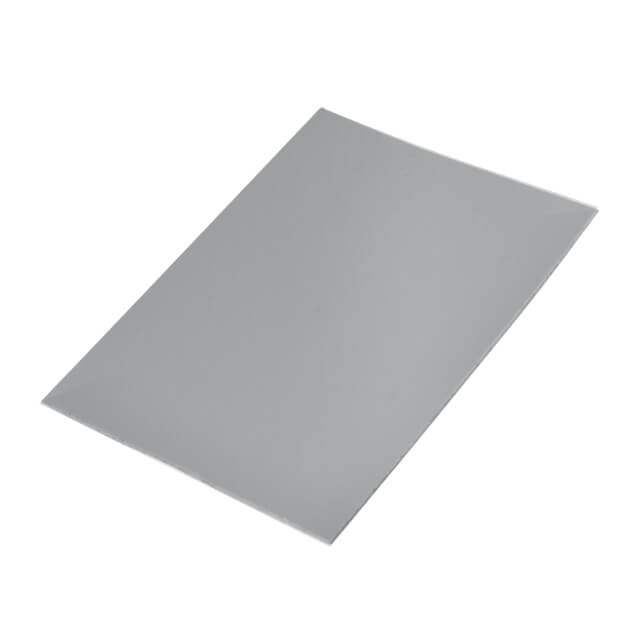

Thermal Pad Gray 41.00mm x 45.00mm Rectangular Tacky - Both Sides

Technical documentation and resources
