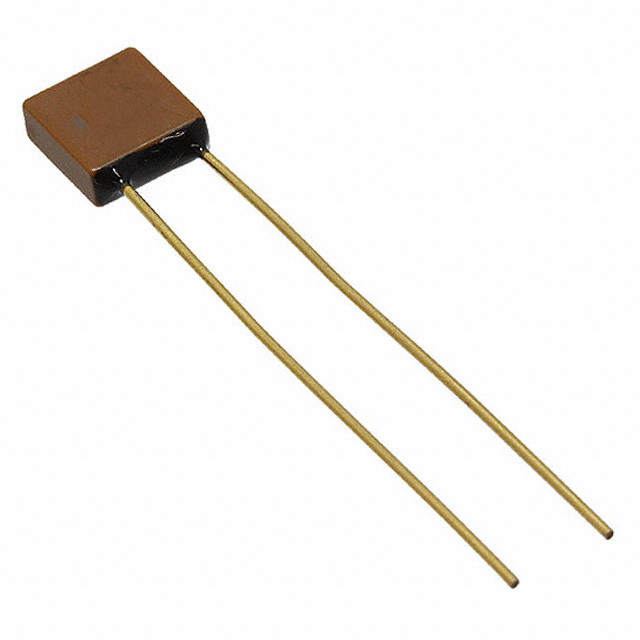

VRR07M103KGS

Active

KEMET

CAP CER 10000PF 1KV X7R RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP CER 10000PF 1KV X7R RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	VRR07M103KGS

Applications	General Purpose
Capacitance	10000 pF
Features	High Voltage, High Temperature
Height - Seated (Max) [Max]	0.3 in
Height - Seated (Max) [Max]	7.62 mm
Lead Spacing	5.08 mm
Lead Spacing	0.2 in
Lead Style	Straight
Mounting Type	Through Hole
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	0.3 in
Size / Dimension [x]	7.62 mm
Size / Dimension [y]	0.15 "
Size / Dimension [y]	3.81 mm
Temperature Coefficient	X7R
Tolerance	10 %
Voltage - Rated	1 kV
Voltage - Rated	1000 V

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Capacitance	Voltage - Rated	Voltage - Rated	Applications	Lead Spacing	Lead Spacing	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Lead Style	Temperature Coefficient	Features
KEMET VRR07M103KGS	0.3 in	7.62 mm	10000 pF	1 kV	1000 V	General Purpose	5.08 mm	0.2 in	Through Hole	0.3 in	0.15 "	3.81 mm	7.62 mm	Radial	-55 °C	200 °C	10 %	Straight	X7R	High Temperature High Voltage

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

10000 pF ±10% 1000V (1kV) Ceramic Capacitor X7R Radial
