19620640543

Active

HARTING Technology Group

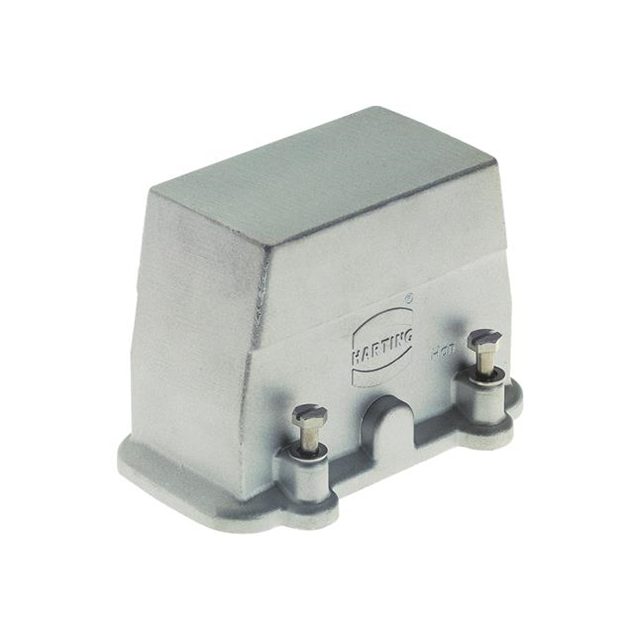

ENCLOSURE FOR CONNECTORS: HDC; SIZE 24B; FOR CABLE; IP65; EMC

Search across all available documentation for this part.

Active

HARTING Technology Group

ENCLOSURE FOR CONNECTORS: HDC; SIZE 24B; FOR CABLE; IP65; EMC

Technical Specifications

Parameters and characteristics for this part

Specification	19620640543

Connector Type	Hood
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Screw Locks on Hood
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	24 B
Size / Dimension [x]	5.236 ", 133 mm
Size / Dimension [y]	71 mm, 2.795 "
Size / Dimension [z]	85 mm, 3.346 "
Style	Side Entry

Part	Housing Material	Connector Type	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Style	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size	Lock Location
HARTING Technology Group 19620640543	Aluminum Die Cast	Hood	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Side Entry	5.236 " 133 mm	2.795 " 71 mm	3.346 " 85 mm	24 B	Screw Locks on Hood
HARTING Technology Group 19620640489

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Side Entry M40 24B IP65 - Dust Tight, Water Resistant
