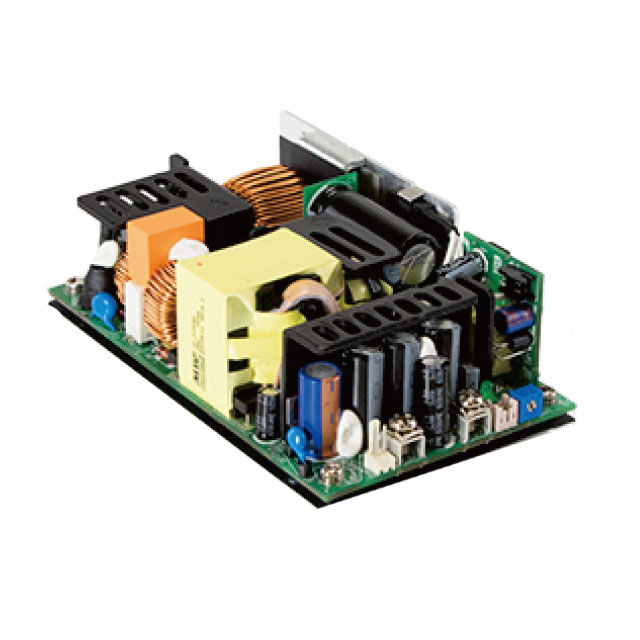

EPP-500-27

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 27V 321W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 27V 321W

Technical Specifications

Parameters and characteristics for this part

Specification	EPP-500-27

Applications	ITE (Commercial)
Approval Agency	TUV, cURus, EAC, CE, CB
Current - Output 1	11.9 A
Efficiency	93.5 %
Features	Universal Input, Adjustable Output, PFC, Standby Output
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 °C
Power (Watts)	500 W, 321 W
Size / Dimension [x]	5 in
Size / Dimension [x]	127 mm
Size / Dimension [y]	3 "
Size / Dimension [y]	76.2 mm
Size / Dimension [z]	1.69 in
Size / Dimension [z]	43 mm
Type	Open Frame
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	80 VAC, 113 VDC
Voltage - Isolation	3000 V
Voltage - Output 1	27 V

Part	Applications	Mounting Type	Voltage - Output 1	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Voltage - Isolation	Power (Watts)	Current - Output 1	Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Input [Min]	Voltage - Input [Max]	Features	Number of Outputs
MEAN WELL USA Inc. EPP-500-27	ITE (Commercial)	Chassis Mount	27 V	CB CE cURus EAC TUV	70 °C	-30 °C	93.5 %	3000 V	321 W 500 W	11.9 A	Open Frame	1.69 in	3 "	43 mm	76.2 mm	5 in	127 mm	80 VAC 113 VDC	264 VAC 370 VDC	Adjustable Output PFC Standby Output Universal Input	1
MEAN WELL USA Inc. EPP-500-18	ITE (Commercial)	Chassis Mount	18 V	CB CE cURus EAC TUV	70 °C	-30 °C	92.5 %	3000 V	320 W 500 W	17.8 A	Open Frame	1.69 in	3 "	43 mm	76.2 mm	5 in	127 mm	80 VAC 113 VDC	264 VAC 370 VDC	Adjustable Output PFC Standby Output Universal Input	1
MEAN WELL USA Inc. EPP-500-48	ITE (Commercial)	Chassis Mount	48 V	CB CE cURus EAC TUV	70 °C	-30 °C	94 %	3000 V	322 W 499 W	6.7 A	Open Frame	1.69 in	3 "	43 mm	76.2 mm	5 in	127 mm	80 VAC 113 VDC	264 VAC 370 VDC	Adjustable Output PFC Standby Output Universal Input	1
MEAN WELL USA Inc. EPP-500-36	ITE (Commercial)	Chassis Mount	36 V	CB CE cURus EAC TUV	70 °C	-30 °C	94 %	3000 V	320 W 500 W	8.9 A	Open Frame	1.69 in	3 "	43 mm	76.2 mm	5 in	127 mm	80 VAC 113 VDC	264 VAC 370 VDC	Adjustable Output PFC Standby Output Universal Input	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	30	$ 81.95

General part information

Open Frame AC DC Converters 1 Output 27V 80 ~ 264 VAC, 113 ~ 370 VDC Input
