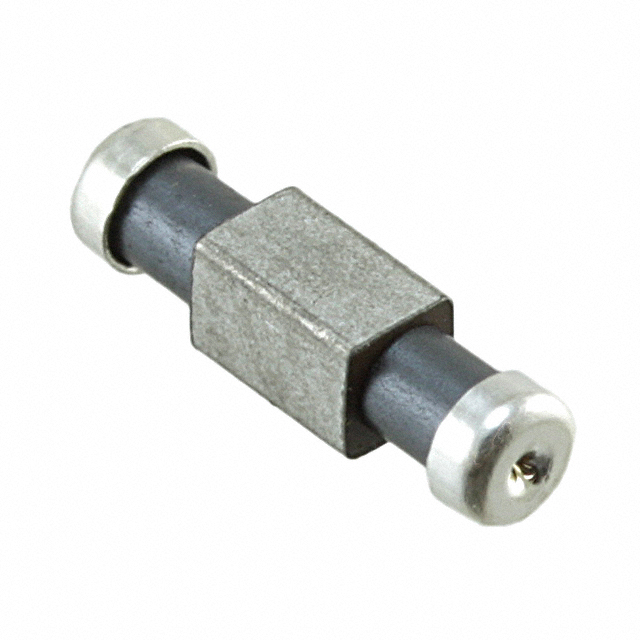

NFE61HT330U2A9L
ActiveMurata Power Solutions Inc.
DATA LINE FILTER, 1 FUNCTION(S), 100V, 2A, EIA STD PACKAGE SIZE 2606, 2 PIN
Deep-Dive with AI
Search across all available documentation for this part.
NFE61HT330U2A9L
ActiveMurata Power Solutions Inc.
DATA LINE FILTER, 1 FUNCTION(S), 100V, 2A, EIA STD PACKAGE SIZE 2606, 2 PIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NFE61HT330U2A9L |
|---|---|
| Current | 2 A |
| ESD Protection | False |
| Filter Order | 3 |
| Height [z] | 1.9 mm |
| Height [z] | 0.075 in |
| Mounting Type | Surface Mount |
| Number of Channels | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 3 Lead |
| Package / Case | 2706 (6816 Metric) |
| Size / Dimension [x] | 0.268 in |
| Size / Dimension [x] | 6.8 mm |
| Size / Dimension [y] | 0.063 in |
| Size / Dimension [y] | 1.6 mm |
| Technology | LC (T-Type) |
| Type | Low Pass |
| Values | 33 pF |
| Voltage - Rated | 100 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.14 | |
| 10 | $ 0.83 | |||
| 25 | $ 0.82 | |||
| 50 | $ 0.80 | |||
| 100 | $ 0.72 | |||
| 250 | $ 0.70 | |||
| 500 | $ 0.61 | |||
| 1000 | $ 0.57 | |||
| Digi-Reel® | 1 | $ 1.14 | ||
| 10 | $ 0.83 | |||
| 25 | $ 0.82 | |||
| 50 | $ 0.80 | |||
| 100 | $ 0.72 | |||
| 250 | $ 0.70 | |||
| 500 | $ 0.61 | |||
| 1000 | $ 0.57 | |||
| Tape & Reel (TR) | 2500 | $ 0.54 | ||
| 5000 | $ 0.52 | |||
| 12500 | $ 0.49 | |||
Description
General part information
NFE61HT Series
LC (T-Type) EMI Filter 3rd Order Low Pass 1 Channel C = 33pF 2 A 2706 (6816 Metric), 3 PC Pad
