ETSA480313UC-P51-WP
ActiveCUI Inc.

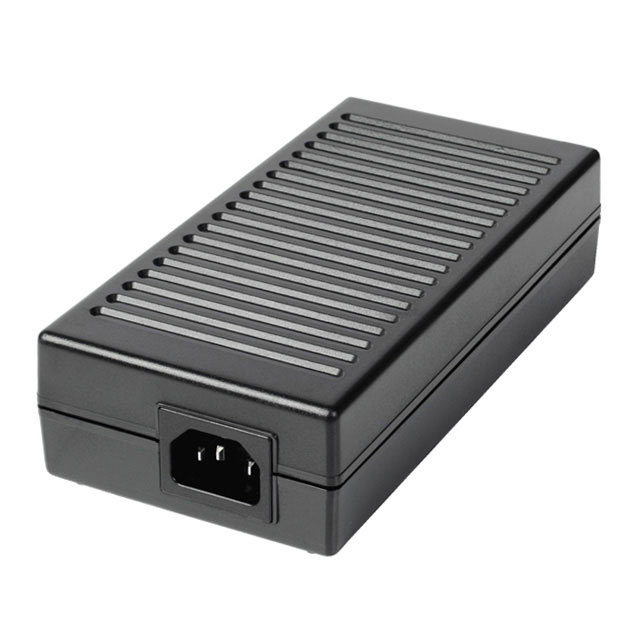

AC/DC DESKTOP ADAPTER 48V 150W
Deep-Dive with AI
Search across all available documentation for this part.
ETSA480313UC-P51-WP
ActiveCUI Inc.
AC/DC DESKTOP ADAPTER 48V 150W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ETSA480313UC-P51-WP |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | UL, TUV, SIQ, EN |
| Cord Length | 1 m |
| Cord Length | 39.4 " |
| Current - Output (Max) [Max] | 3.13 A |
| Efficiency | Level VI |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| No Load Power Consumption | 500 mW |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | 4 Pin |
| Output Connector | Power DIN |
| Power (Watts) | 150 W |
| Region Utilized | North America |
| Size / Dimension [x] | 6.69 " |
| Size / Dimension [x] | 170 mm |
| Size / Dimension [y] | 3.35 in |
| Size / Dimension [y] | 85 mm |
| Size / Dimension [z] | 1.73 " |
| Size / Dimension [z] | 44 mm |
| Standard Number | 55024, 55032 Class B, 61000-3-3, 61000-3-2, 60950-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 3000 | $ 82.16 | |
Description
General part information
ETSA480313 Series
48V 150 W AC/DC External Desktop (Class I) Adapter Cord Input
