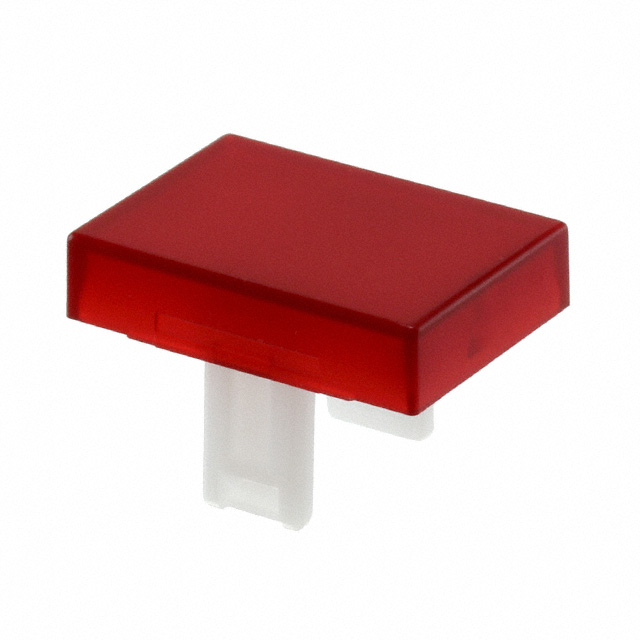

31-901.2

Active

EAO

CAP PUSHBUTTON RECTANGLE RED

Search across all available documentation for this part.

Active

EAO

CAP PUSHBUTTON RECTANGLE RED

Technical Specifications

Parameters and characteristics for this part

Specification	31-901.2

Color	Red
For Use With/Related Products	31 Series
Illumination	Illuminated
Mounting Type	Snap Fit
Shape	Rectangular
Size [x]	15.3 mm
Size [y]	21.5 mm
Switch Type	Pushbutton

Pushbutton Switches LENS TPT WTLT YLW

Part	Circuit	Current Rating (Amps)	Actuator Marking	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Switch Function	Mechanical Life	Voltage Rating - DC	Actuator Type	Type	Mounting Type	Termination Style	Panel Cutout Dimensions [diameter]	Ingress Protection	Size [x]	Size [y]	For Use With/Related Products	Illumination	Shape	Color	Switch Type	Panel Cutout Shape	Lens Size [diameter]	Panel Cutout Dimensions	Panel Cutout Dimensions
EAO 31-423.036	DPST-NO/NC	100 mA	No Marking	55 °C	-25 °C	42 V	Off-Mom On-Mom	5000000 Cycles	42 V	Rectangular Button (Not Included)	Standard	Panel Mount Front	PC Pin Solder Lug	16 mm	IP40
EAO 31-901.6												Snap Fit				15.3 mm	21.5 mm	31 Series	Illuminated	Rectangular	Blue	Pushbutton
EAO 31-901.3												Snap Fit				15.3 mm	21.5 mm	31 Series	Illuminated	Rectangular		Pushbutton
EAO 31-706.029	DPST-NO/NC	5 A	No Marking	55 °C	-25 °C	250 V	Off-Mom On-Mom	2000000 Cycles		Rectangular Button (Not Included)	Standard	Panel Mount Front	Solder Lug	16 mm	IP40
EAO 31-901.2												Snap Fit				15.3 mm	21.5 mm	31 Series	Illuminated	Rectangular	Red	Pushbutton
EAO 31-031.006											LED		Quick Connect		IP40								Round	18 mm	0.64 in	16.2 mm
EAO 31-901.4												Snap Fit				15.3 mm	21.5 mm	31 Series	Illuminated	Rectangular	Yellow	Pushbutton
EAO 31-901.9												Snap Fit				15.3 mm	21.5 mm	31 Series	Illuminated	Rectangular	White	Pushbutton
