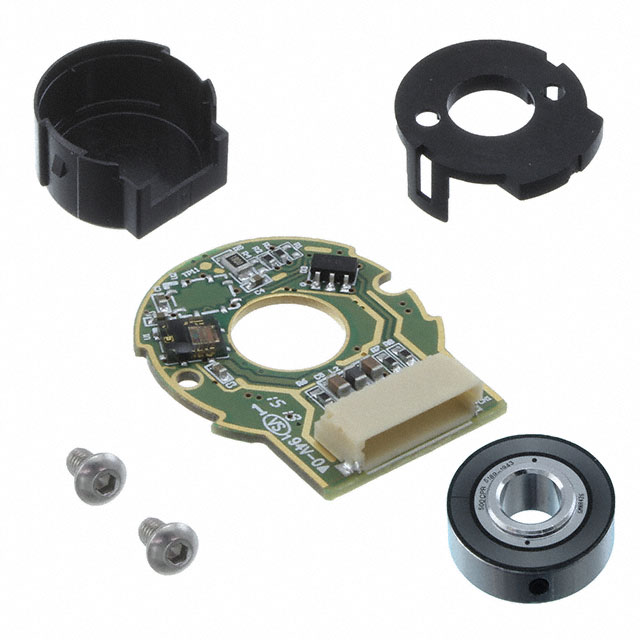

AS22-M560-4T12
ActiveBroadcom Limited
ROTARY ENCODR INCREMENT 2000PPR
Deep-Dive with AI
Search across all available documentation for this part.
AS22-M560-4T12
ActiveBroadcom Limited
ROTARY ENCODR INCREMENT 2000PPR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AS22-M560-4T12 |
|---|---|
| Actuator Type | Hole for Shaft |
| Built in Switch | False |
| Detent | False |
| Encoder Type | Incremental |
| Mounting Type | Chassis Mount |
| Orientation | User Selectable |
| Pulses per Revolution | 2000 pulses per revolution |
| Termination Style | Connector |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 44.03 | |
| 5 | $ 39.41 | |||
| 10 | $ 36.98 | |||
| 25 | $ 33.90 | |||
| 50 | $ 31.70 | |||
| 150 | $ 29.72 | |||
| 300 | $ 28.62 | |||
Description
General part information
AS22-M560 Series
ROTARY ENCODR INCREMENT 2000PPR
Documents
Technical documentation and resources
No documents available
