VF-D320-D524A-1

Obsolete

CUI Inc.

AC/DC CONVERTER 5V 24V 320W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

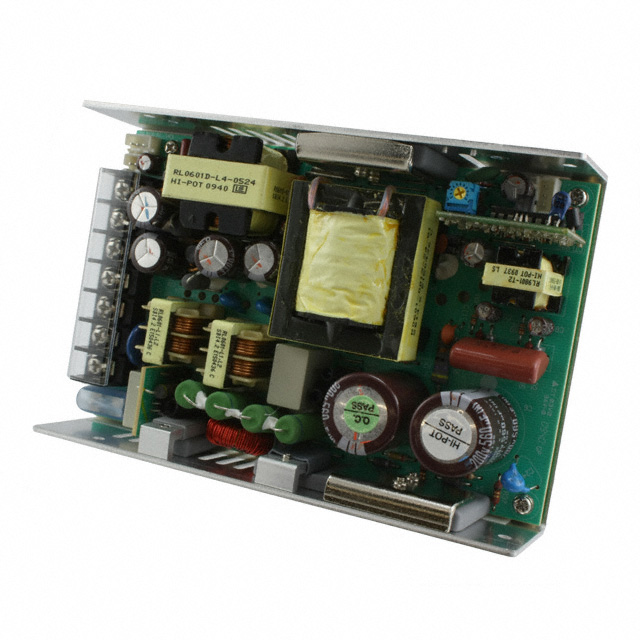

VF-D320-D524A-1

Obsolete

CUI Inc.

AC/DC CONVERTER 5V 24V 320W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VF-D320-D524A-1

Applications	ITE (Commercial)
Approval Agency	IEC, EN, TUV, UL, CB Scheme, SIQ
Current - Output 1	30 A
Current - Output 2	8.33 A
Efficiency	75 %
Features	PFC, Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	320 W
Size / Dimension [x]	152.4 mm
Size / Dimension [x]	6 in
Size / Dimension [y]	4 "
Size / Dimension [y]	101.6 mm
Size / Dimension [z]	38.1 mm
Size / Dimension [z]	1.5 "
Standard Number	61000-3-3, 55032 Class B, 61000-3-2, 62368-1, 55024
Type	Open Frame
Voltage - Input [Max]	132 VAC, 264 VAC
Voltage - Input [Min]	90 VAC, 180 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	5 V
Voltage - Output 2	24 V

VF-D320-DXXA Series

Switching Power Supplies ac-dc, 300 W, 5/24 Vdc, dual output, metal case w/ side fan

Part	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Operating Temperature [Max]	Approval Agency	Voltage - Isolation	Power (Watts)	Number of Outputs	Voltage - Output 2	Efficiency	Current - Output 1	Current - Output 2	Standard Number	Mounting Type	Type	Voltage - Output 1	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]
CUI Inc. VF-D320-D524A-CFS	90 VAC 180 VAC	132 VAC 264 VAC	ITE (Commercial)	70 °C	CB Scheme EN IEC SIQ TUV UL	3000 V	320 W	2	24 V	75 %	30 A	8.33 A	55024 60950-1 61000-3-2 61000-3-3 62368-1	Chassis Mount	Enclosed	5 V	Adjustable Output PFC Universal Input	101.6 mm	177.8 mm	7 "	1.6 "	4 "	40.6 mm
CUI Inc. VF-D320-D1224A-CFS-1	90 VAC 180 VAC	132 VAC 264 VAC	ITE (Commercial)	70 °C	CB Scheme EN IEC SIQ TUV UL	3000 V	320 W	2	24 V	75 %	16.67 A	8.33 A	55024 60950-1 61000-3-2 61000-3-3 62368-1	Chassis Mount	Enclosed	12 V	Adjustable Output PFC Universal Input	101.6 mm	177.8 mm	7 "	1.6 "	4 "	40.6 mm
CUI Inc. VF-D320-D524A-CFS-1	90 VAC 180 VAC	132 VAC 264 VAC	ITE (Commercial)	70 °C	CB Scheme EN IEC SIQ TUV UL	3000 V	320 W	2	24 V	75 %	30 A	8.33 A	55024 60950-1 61000-3-2 61000-3-3 62368-1	Chassis Mount	Enclosed	5 V	Adjustable Output PFC Universal Input	101.6 mm	177.8 mm	7 "	1.6 "	4 "	40.6 mm
CUI Inc. VF-D320-D548A-CFS-1	90 VAC 180 VAC	132 VAC 264 VAC	ITE (Commercial)	70 °C	CB Scheme EN IEC SIQ TUV UL	3000 V	320 W	2	48 V	75 %	30 A	4.16 A	55024 55032 Class B 61000-3-2 61000-3-3 62368-1	Chassis Mount	Enclosed	5 V	Adjustable Output PFC Universal Input	101.6 mm	177.8 mm	7 "	1.6 "	4 "	40.6 mm
CUI Inc. VF-D320-D548A-CFS	90 VAC 180 VAC	132 VAC 264 VAC	ITE (Commercial)	70 °C	CB Scheme EN IEC SIQ TUV UL	3000 V	320 W	2	48 V	75 %	30 A	4.16 A	55024 55032 Class B 61000-3-2 61000-3-3 62368-1	Chassis Mount	Enclosed	5 V	Adjustable Output PFC Universal Input	101.6 mm	177.8 mm	7 "	1.6 "	4 "	40.6 mm
CUI Inc. VF-D320-D1224A-CFS	90 VAC 180 VAC	132 VAC 264 VAC	ITE (Commercial)	70 °C	CB Scheme EN IEC SIQ TUV UL	3000 V	320 W	2	24 V	75 %	16.67 A	8.33 A	55024 60950-1 61000-3-2 61000-3-3 62368-1	Chassis Mount	Enclosed	12 V	Adjustable Output PFC Universal Input	101.6 mm	177.8 mm	7 "	1.6 "	4 "	40.6 mm
CUI Inc. VF-D320-D1224A-1	90 VAC 180 VAC	132 VAC 264 VAC	ITE (Commercial)	70 °C	CB Scheme EN IEC SIQ TUV UL	3000 V	320 W	2	24 V	75 %	16.67 A	8.33 A	55024 55032 Class B 61000-3-2 61000-3-3 62368-1	Chassis Mount	Open Frame	12 V	Adjustable Output PFC Universal Input	101.6 mm	152.4 mm	6 in	1.5 "	4 "	38.1 mm
CUI Inc. VF-D320-D524A-1	90 VAC 180 VAC	132 VAC 264 VAC	ITE (Commercial)	70 °C	CB Scheme EN IEC SIQ TUV UL	3000 V	320 W	2	24 V	75 %	30 A	8.33 A	55024 55032 Class B 61000-3-2 61000-3-3 62368-1	Chassis Mount	Open Frame	5 V	Adjustable Output PFC Universal Input	101.6 mm	152.4 mm	6 in	1.5 "	4 "	38.1 mm
CUI Inc. VF-D320-D512A-1	90 VAC 180 VAC	132 VAC 264 VAC	ITE (Commercial)	70 °C	CB Scheme EN IEC SIQ TUV UL	3000 V	320 W	2	12 V	75 %	30 A	16.67 A	55024 55032 Class B 61000-3-2 61000-3-3 62368-1	Chassis Mount	Open Frame	5 V	Adjustable Output PFC Universal Input	101.6 mm	152.4 mm	6 in	1.5 "	4 "	38.1 mm
CUI Inc. VF-D320-D1224A	90 VAC 180 VAC	132 VAC 264 VAC	ITE (Commercial)	70 °C	CB Scheme EN IEC SIQ TUV UL	3000 V	320 W	2	24 V	75 %	16.67 A	8.33 A	55024 60950-1 61000-3-2 61000-3-3 62368-1	Chassis Mount	Open Frame	12 V	Adjustable Output PFC Universal Input	101.6 mm	152.4 mm	6 in	1.5 "	4 "	38.1 mm
