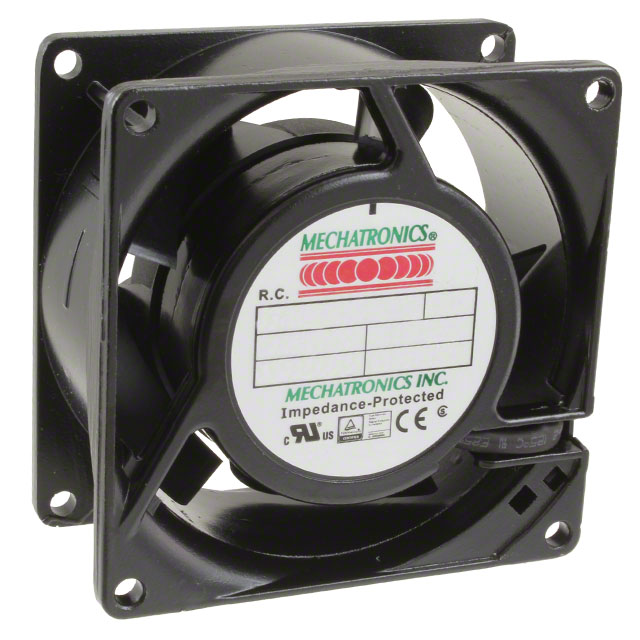

UF80A12-BTHR

Active

Mechatronics Bearing Group

FAN AXIAL 80X38MM 115VAC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAC Axial Part Numbering Guide AC/DC Fans & Blowers Catalog +1

UF80A12-BTHR

Active

Mechatronics Bearing Group

FAN AXIAL 80X38MM 115VAC

Deep-Dive with AI

DocumentsAC Axial Part Numbering Guide AC/DC Fans & Blowers Catalog +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UF80A12-BTHR

Air Flow	30 CFM
Air Flow	0.84 mł/min
Approval Agency	CE, cUL, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	120 mA
Fan Type	Tubeaxial
Material - Blade	Polybutylene Terephthalate (PBT)
Material - Frame	Aluminum
Noise	36 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	9 W
RPM	3000 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Static Pressure	0.22 in H2O
Static Pressure	54.8 Pa
Termination	2 Terminals
Voltage - Rated	115 VAC
Weight	0.617 lb
Weight	279.87 g
Width [y]	38 mm

UF80A Series

Part	Static Pressure	Static Pressure	RPM	Air Flow	Air Flow	Approval Agency	Bearing Type	Voltage - Rated	Size / Dimension [y]	Size / Dimension [x]	Current Rating (Amps)	Noise	Material - Blade	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Power (Watts)	Weight	Weight	Fan Type	Material - Frame	Termination	Width [y]
Mechatronics Bearing Group UF80A23-SWHR	0.22 in H2O	54.8 Pa	3000 RPM	0.84 mł/min	30 CFM	CE cUL TUV UL	Sleeve	230 VAC	80 mm	80 mm	60 mA	36 dB	Polybutylene Terephthalate (PBT)	70 °C	70 °C	-40 °C	-40 °C	12 W	0.617 lb	279.87 g	Tubeaxial	Aluminum	2 Wire Leads	38 mm
Mechatronics Bearing Group UF80AM12-BTHR-F	0.26 in H2O	64.8 Pa	3250 RPM	0.952 m³/min	34 CFM		Ball	115 VAC	80 mm	80 mm		40 dB(A)	Metal	90 °C	90 °C	-40 °C	-40 °C	11 W			Tubeaxial	Aluminum	2 Terminals	38 mm
Mechatronics Bearing Group UF80A23-BTLR			2400 RPM	0.7 mł/min	25 CFM	CE cUL TUV UL	Ball	230 VAC	80 mm	80 mm	50 mA	32 dB	Polybutylene Terephthalate (PBT)	70 °C	70 °C	-40 °C	-40 °C	12 W	0.617 lb	279.87 g	Tubeaxial	Aluminum	2 Terminals	38 mm
Mechatronics Bearing Group UF80A02-BWHR-L24						CE	Ball		80 mm	80 mm			Polybutylene Terephthalate (PBT)	70 °C	70 °C	-40 °C	-40 °C				Tubeaxial		2 Wire Leads	38 mm
Mechatronics Bearing Group UF80A12-BWLR			2400 RPM	0.7 mł/min	25 CFM	CE cUL TUV UL	Ball	115 VAC	80 mm	80 mm	100 mA	32 dB	Polybutylene Terephthalate (PBT)	70 °C	70 °C	-40 °C	-40 °C	9 W	0.617 lb	279.87 g	Tubeaxial	Aluminum	2 Wire Leads	38 mm
Mechatronics Bearing Group UF80AM12-BWHR-F	0.26 in H2O	64.8 Pa	3250 RPM	0.952 m³/min	34 CFM		Ball	115 VAC	80 mm	80 mm		40 dB(A)	Metal	90 °C	90 °C	-40 °C	-40 °C	11 W			Tubeaxial	Aluminum	2 Wire Leads	38 mm
Mechatronics Bearing Group UF80A12-BTLR			2400 RPM	0.7 mł/min	25 CFM	CE cUL TUV UL	Ball	115 VAC	80 mm	80 mm	100 mA	32 dB	Polybutylene Terephthalate (PBT)	70 °C	70 °C	-40 °C	-40 °C	9 W	0.617 lb	279.87 g	Tubeaxial	Aluminum	2 Terminals	38 mm
Mechatronics Bearing Group UF80A12-BTHR	0.22 in H2O	54.8 Pa	3000 RPM	0.84 mł/min	30 CFM	CE cUL TUV UL	Ball	115 VAC	80 mm	80 mm	120 mA	36 dB	Polybutylene Terephthalate (PBT)	70 °C	70 °C	-40 °C	-40 °C	9 W	0.617 lb	279.87 g	Tubeaxial	Aluminum	2 Terminals	38 mm
Mechatronics Bearing Group UF80A23-BWHR	0.22 in H2O	54.8 Pa	3000 RPM	0.84 mł/min	30 CFM	CE cUL TUV UL	Ball	230 VAC	80 mm	80 mm	60 mA	36 dB	Polybutylene Terephthalate (PBT)	70 °C	70 °C	-40 °C	-40 °C	12 W	0.617 lb	279.87 g	Tubeaxial	Aluminum	2 Wire Leads	38 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.74
		10	$ 18.94
		25	$ 18.22
		72	$ 17.02
		144	$ 15.70
		288	$ 15.46
		504	$ 15.34

Description

General part information

UF80A Series

Fan Tubeaxial 115VAC Square - 80mm L x 80mm H Ball 30.0 CFM (0.840mł/min) 2 Terminals

Documents

Technical documentation and resources

AC Axial Part Numbering Guide

Datasheet

AC/DC Fans & Blowers Catalog

Datasheet
