7945002-601

Active

Laird Thermal Systems, Inc.

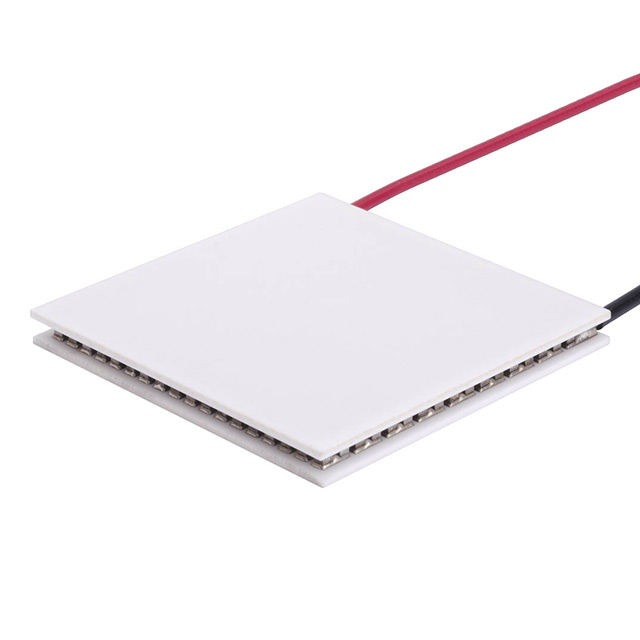

PELTIER MOD ZT5,16,F1,4040,TA,W8

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

PELTIER MOD ZT5,16,F1,4040,TA,W8

Technical Specifications

Parameters and characteristics for this part

Part	Delta Tmax @ Th	Qmax @ Th	Height [z]	Resistance	Number of Stages	Size / Dimension [y]	Size / Dimension [x]	Features	Voltage - Max [Max]	Operating Temperature	Current - Max [Max]
Laird Thermal Systems, Inc. 7945002-601	74 °C	62.3 W	3.71 mm	3.33 Ohms	1	40 mm	40 mm	Lead Wires Non-Sealed	20 V	80 °C	5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Peltier Module 62.3W @ 25°C 5 A 80°C
