Technical Specifications
Parameters and characteristics for this part
| Specification | SBCH5R68J |
|---|---|
| Composition | Wirewound |
| Features | Flame Proof, Safety |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 350 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Axial |
| Power (Watts) | 5 W |
| Resistance | 680 mOhms |
| Size / Dimension [x] | 8 mm |
| Size / Dimension [x] | 0.315 " |
| Size / Dimension [y] | 7 mm |
| Size / Dimension [y] | 0.276 in |
| Size / Dimension [z] | 25 mm |
| Size / Dimension [z] | 0.984 in |
| Temperature Coefficient | 400 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.95 | |
| 10 | $ 0.80 | |||
| 25 | $ 0.77 | |||
| 50 | $ 0.70 | |||
| 100 | $ 0.58 | |||
| 250 | $ 0.51 | |||
| 500 | $ 0.48 | |||
Description
General part information
SBCH5 Series

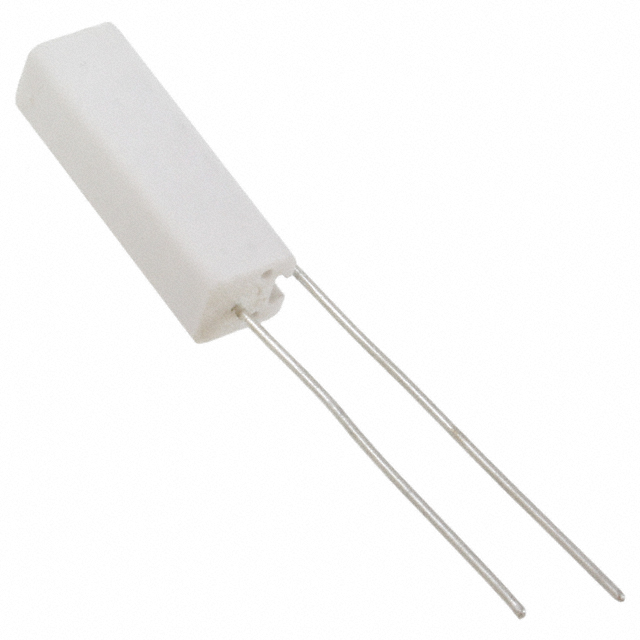

680 mOhms ±5% 5W Through Hole Resistor Axial Flame Proof, Safety Wirewound
