51-253.022
ActiveEAO
EMERGENCY STOP SWITCH, SPST-NC, SPST-NO, ON, QUICK CONNECT, SOLDER, 5 A, 250 V, 250 V
Deep-Dive with AI
Search across all available documentation for this part.
51-253.022
ActiveEAO
EMERGENCY STOP SWITCH, SPST-NC, SPST-NO, ON, QUICK CONNECT, SOLDER, 5 A, 250 V, 250 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 51-253.022 |
|---|---|
| Circuit | DPST-NO/NC |
| Current Rating (Amps) | 5 A |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 16 mm |
| Reset Operation | Twist |
| Switch Function | On-Off, Off-On |
| Termination Style | 0.11 in |
| Termination Style | Quick Connect, Solder |
| Termination Style | 2.8 mm |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
51-253 Series

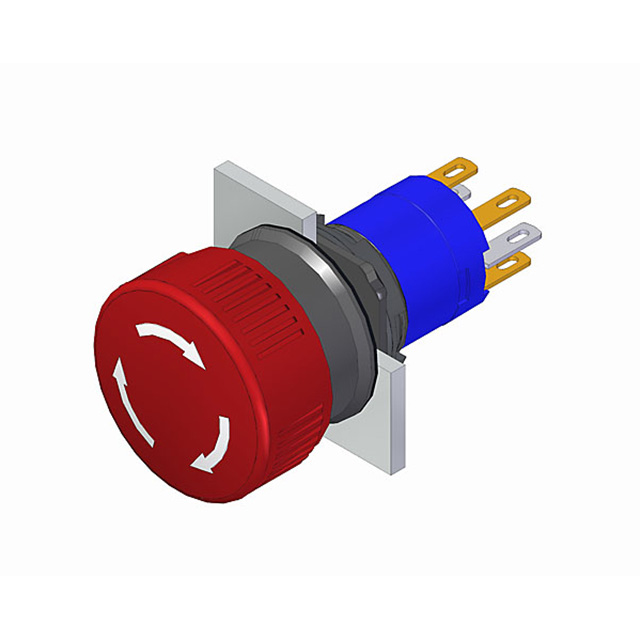

The 51-253.022 is a maintained Stop Switch with gold-plated contact, red plastic lens, mushroom lens profile, opaque lens optics and 1NC+1NO contact type. Snap-action switching element.
