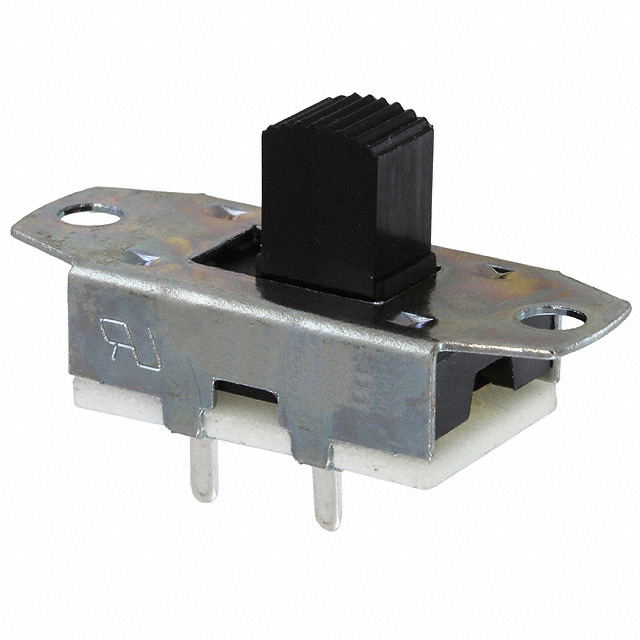

GF-1123-1110

Active

CW Industries

SWITCH SLIDE SPST 11A 125V

Search across all available documentation for this part.

Active

CW Industries

SWITCH SLIDE SPST 11A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Actuator Type	Switch Function	Actuator Length [x]	Electrical Life	Contact Material	Voltage Rating - AC	Circuit	Mechanical Life	Contact Finish	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Switch Travel	Contact Timing	Current Rating (Amps)	Actuator Material	Features
CW Industries GF-1123-0013	Standard	On-Off	19.05 mm	6000 Cycles	Copper	125 V	SPST	10000 Steps	Silver	Wire Wrap	104 °C	-10 °C	125 VDC	4.01 mm	Not Specified	11 A 500 mA	Nylon 6/6 Polyamide (PA66)
CW Industries GF-1123-0000	Standard	On-Off	8.74 mm	6000 Cycles	Copper	125 V	SPST	10000 Steps	Silver	Solder Lug	104 °C	-10 °C	125 VDC	4.01 mm	Not Specified	11 A 500 mA	Nylon 6/6 Polyamide (PA66)
CW Industries GF-1123-0025	Standard	On-Off	8.89 mm	6000 Cycles	Copper	125 V	SPST	10000 Steps	Silver	Wire Wrap	104 °C	-10 °C	125 VDC	4.01 mm	Not Specified	11 A 500 mA	Nylon 6/6 Polyamide (PA66)	White Actuator
CW Industries GF-1123-1110	Standard	On-Off	8.74 mm	6000 Cycles	Copper	125 V	SPST	10000 Steps	Silver	PC Pin	104 °C	-10 °C	125 VDC	4.01 mm	Not Specified	11 A 500 mA	Nylon 6/6 Polyamide (PA66)
CW Industries GF-1123-0027	Standard	On-Off	8.89 mm	6000 Cycles	Copper	125 V	SPST	10000 Steps	Silver	Wire Wrap	104 °C	-10 °C	125 VDC	4.01 mm	Not Specified	11 A 500 mA	Nylon 6/6 Polyamide (PA66)
CW Industries GF-1123-0009	Standard	On-Off	8.74 mm	6000 Cycles	Copper	125 V	SPST	10000 Steps	Silver	Solder Lug	104 °C	-10 °C	125 VDC	4.01 mm	Not Specified	11 A 500 mA	Nylon 6/6 Polyamide (PA66)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Slide Switch SPST Panel Mount
