09K246-40ML5

Active

Rosenberger

CONN RPC2.40 JCK ST 50OHM EDGEMT

Search across all available documentation for this part.

Active

Rosenberger

CONN RPC2.40 JCK ST 50OHM EDGEMT

Technical Specifications

Parameters and characteristics for this part

Specification	09K246-40ML5

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	OS-50
Connector Style	2.4 mm
Connector Style	APC-2.4
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polyetheretherketone (PEEK), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	50 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Cutout, Board Edge, Surface Mount
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	150 VDC

Part	Mating Cycles	Connector Type	Center Contact Material	Contact Termination	Center Contact Plating	Impedance	Housing Color	Mounting Type	Frequency - Max [Max]	Voltage Rating	Body Material	Dielectric Material	Shield Termination	Operating Temperature [Max]	Operating Temperature [Min]	Connector Style	Connector Style	Connector Style	Body Finish	Number of Ports
Rosenberger 09K246-40ML5	500	Female Socket Jack	Beryllium Copper	Solder	Gold	50 Ohms	Gold	Board Edge Cutout Surface Mount	50 GHz	150 VDC	Brass	Polyetheretherketone (PEEK) Polytetrafluoroethylene (PTFE)	Solder	85 °C	-40 °C	OS-50	2.4 mm	APC-2.4	Gold	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

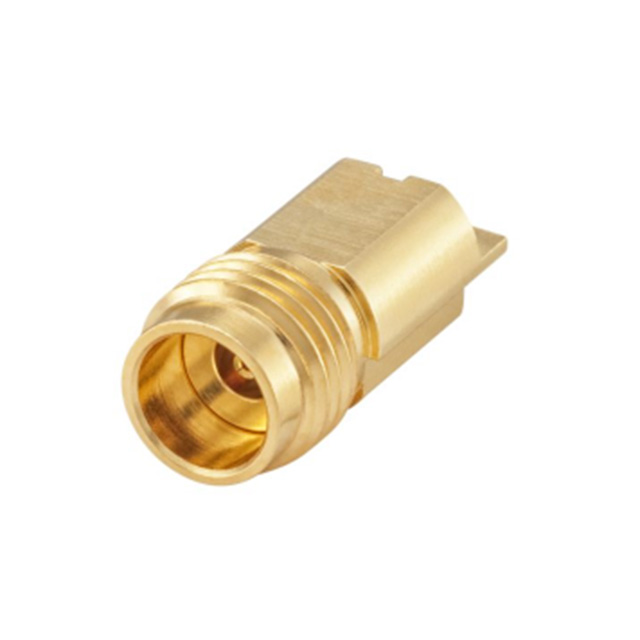

2.4mm (APC-2.4, OS-50) Connector Jack, Female Socket 50 Ohms Board Edge, Cutout; Surface Mount Solder
