19390160526
ActiveHARTING Technology Group

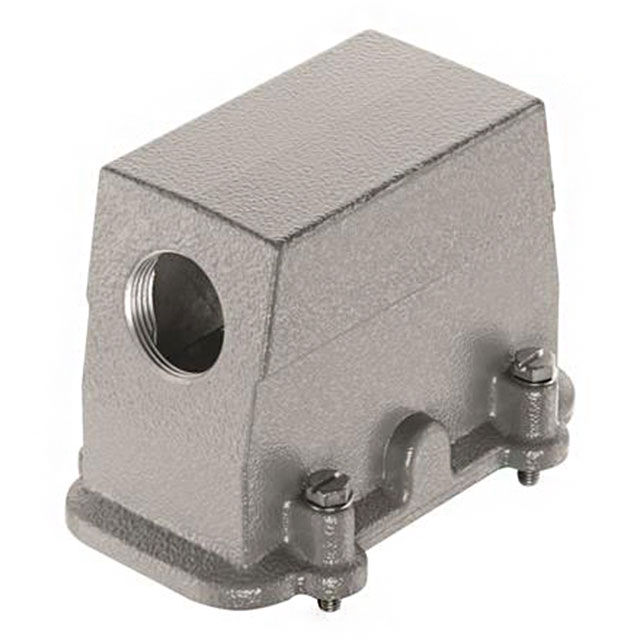

16B HP SCREW DOWN HOOD, SIDE ENTRY, M25
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 19390160526 |
|---|---|
| Connector Type | Hood |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
| Housing Material | Die Cast, Aluminum |
| Ingress Protection | IP69K, IP66, IP68, Dust Tight, Water Resistant, Waterproof |
| Lock Location | Screw Locks on Hood |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 16 B |
| Size / Dimension [x] | 4.193 " |
| Size / Dimension [x] | 106.5 mm |
| Size / Dimension [y] | 71 mm |
| Size / Dimension [y] | 2.795 in |
| Size / Dimension [z] | 2.953 in |
| Size / Dimension [z] | 75 mm |
| Style | Side Entry |
| Thread Size | M25 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
19390160 Series
Hood Connector Side Entry M25 16B IP66/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
