CFM-6010V-130-205-11

Obsolete

CUI Devices

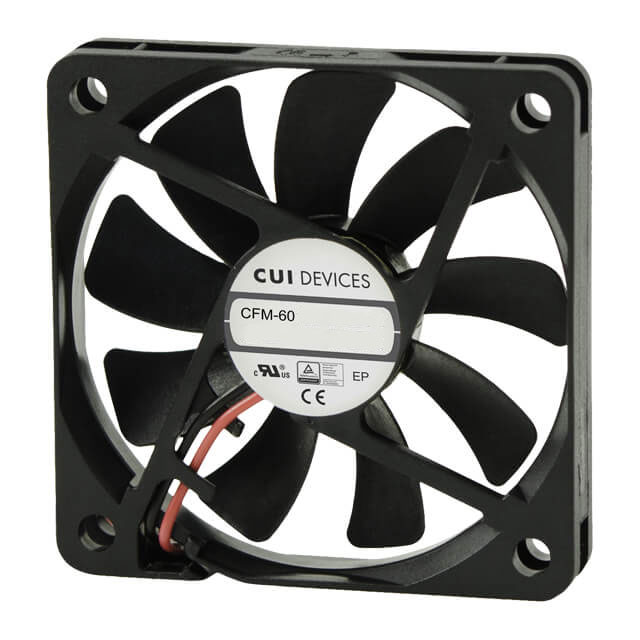

FAN AXIAL 60X10MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CFM-6010V-130-205-11

Obsolete

CUI Devices

FAN AXIAL 60X10MM 12VDC WIRE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CFM-6010V-130-205-11

Air Flow	0.342 mł/min
Air Flow	12.2 CFM
Approval Agency	cURus, CE, TUV
Current Rating (Amps)	0.056 A
Fan Type	Tubeaxial
Features	Locked Rotor Sensor, Auto Restart
Lifetime @ Temp.	70000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	20.5 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	680 mW
RPM	3000 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Static Pressure	0.08 in H2O
Static Pressure	20 Pa
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	6 VDC
Weight	23.13 g
Weight	0.051 lb
Width [y]	10 mm

CFM-6010 Series

Part	Approval Agency	Air Flow	Air Flow	Voltage - Rated	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Weight	Weight	Features	Noise	Power (Watts)	Static Pressure	Static Pressure	Lifetime @ Temp.	Voltage Range [Max]	Voltage Range [Min]	Fan Type	Current Rating (Amps)	Material - Blade	Termination	Width [y]	RPM	Bearing Type
CUI Devices CFM-6010V-130-205-11	CE cURus TUV	0.342 mł/min	12.2 CFM	12 VDC	60 mm	60 mm	70 °C	70 °C	-10 °C	-10 °C	23.13 g	0.051 lb	Auto Restart Locked Rotor Sensor	20.5 dB(A)	680 mW	0.08 in H2O	20 Pa	70000 Hrs	13.8 VDC	6 VDC	Tubeaxial	0.056 A	Polybutylene Terephthalate (PBT)	3 Wire Leads	10 mm	3000 RPM
CUI Devices CFM-6010V-130-205-11	CE cURus TUV	0.342 mł/min	12.2 CFM	12 VDC	60 mm	60 mm	70 °C	70 °C	-10 °C	-10 °C	23.13 g	0.051 lb	Auto Restart Locked Rotor Sensor	20.5 dB(A)	680 mW	0.08 in H2O	20 Pa	70000 Hrs	13.8 VDC	6 VDC	Tubeaxial	0.056 A	Polybutylene Terephthalate (PBT)	3 Wire Leads	10 mm	3000 RPM
CUI Devices CFM-6010-13-11	CE cURus TUV	0.678 m³/min	24.2 CFM	12 VDC	60 mm	60 mm	70 °C	70 °C	-10 °C	-10 °C	29.03 g	0.064 lb	Auto Restart Locked Rotor Sensor	41.4 dB(A)	3.12 W	0.22 in H2O	54.8 Pa	70000 Hrs	13.8 VDC	6 VDC	Tubeaxial	0.2 A	Polybutylene Terephthalate (PBT)	3 Wire Leads		5500 RPM	Ball
CUI Devices CFM-6010-13-11	CE cURus TUV	0.678 m³/min	24.2 CFM	12 VDC	60 mm	60 mm	70 °C	70 °C	-10 °C	-10 °C	29.03 g	0.064 lb	Auto Restart Locked Rotor Sensor	41.4 dB(A)	3.12 W	0.22 in H2O	54.8 Pa	70000 Hrs	13.8 VDC	6 VDC	Tubeaxial	0.2 A	Polybutylene Terephthalate (PBT)	3 Wire Leads		5500 RPM	Ball

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

CFM-6010 Series

Fan Tubeaxial 12VDC Square - 60mm L x 60mm H omniCOOL™ Magnetic Sleeve 12.2 CFM (0.342mł/min) 3 Wire Leads
