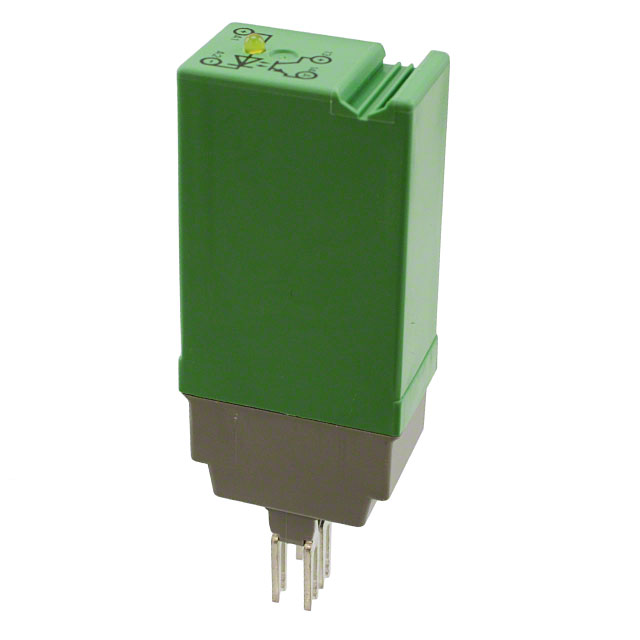

2903228
ActivePhoenix Contact
SSR RELAY SPST-NO 3A 12-60V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2903228
ActivePhoenix Contact
SSR RELAY SPST-NO 3A 12-60V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2903228 |
|---|---|
| Approval Agency | GOST |
| Load Current | 3 A |
| Mounting Type | Socketable |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Output Type | DC |
| Package / Case | Module |
| Termination Style | Plug In |
| Voltage - Input | 24 V |
| Voltage - Load [Max] | 60 V |
| Voltage - Load [Min] | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 162.20 | |
| 10 | $ 149.22 | |||
| 50 | $ 137.87 | |||
Description
General part information
290322 Series
Solid State SPST-NO (1 Form A) Module
Documents
Technical documentation and resources
