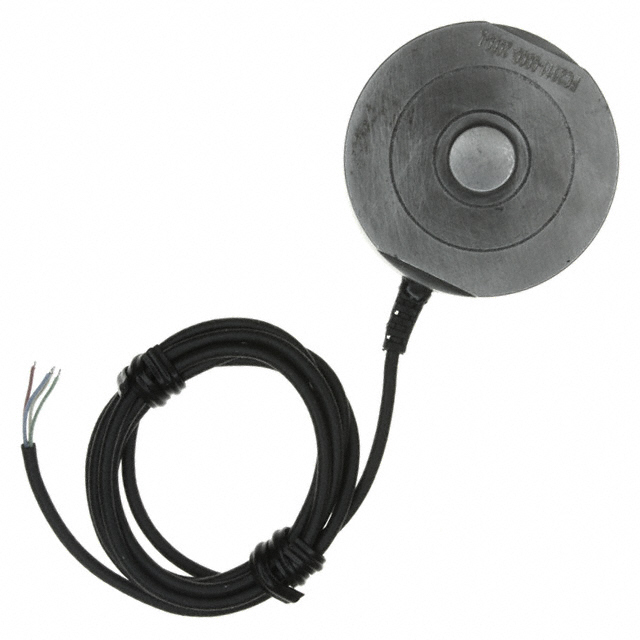

FC2311-0000-2000-L

Active

TE Connectivity Measurement Specialties

SENSOR FORCE LOAD CELL 2000LBS

Search across all available documentation for this part.

Active

TE Connectivity Measurement Specialties

SENSOR FORCE LOAD CELL 2000LBS

Technical Specifications

Parameters and characteristics for this part

Specification	FC2311-0000-2000-L

Accuracy	1 %
Actuator Style/Size	Round
Actuator Style/Size	8 mm
Actuator Type	Pushbutton
Compensated Temperature [Max]	50 °C
Compensated Temperature [Min]	0 °C
Includes	Sensor
Operating Force	2000 lbs
Operating Force	907.18 kgf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	100 mV
Sensor Type	Load Cell
Voltage - Supply [Max]	10 V
Voltage - Supply [Min]	2 V

Part	Operating Force	Operating Force	Actuator Type	Accuracy	Compensated Temperature [Min]	Compensated Temperature [Max]	Output	Actuator Style/Size	Actuator Style/Size	Sensor Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Includes
TE Connectivity Measurement Specialties FC2311-0000-1000-L	1000 lbs	453.59 kgf	Pushbutton	1 %	0 °C	50 °C	100 mV	Round	8 mm	Load Cell	2 V	10 V	85 °C	-40 °C
TE Connectivity Measurement Specialties FC2311-0000-2000-L	2000 lbs	907.18 kgf	Pushbutton	1 %	0 °C	50 °C	100 mV	Round	8 mm	Load Cell	2 V	10 V	85 °C	-40 °C	Sensor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SENSOR FORCE LOAD CELL 2000LBS

Technical documentation and resources
