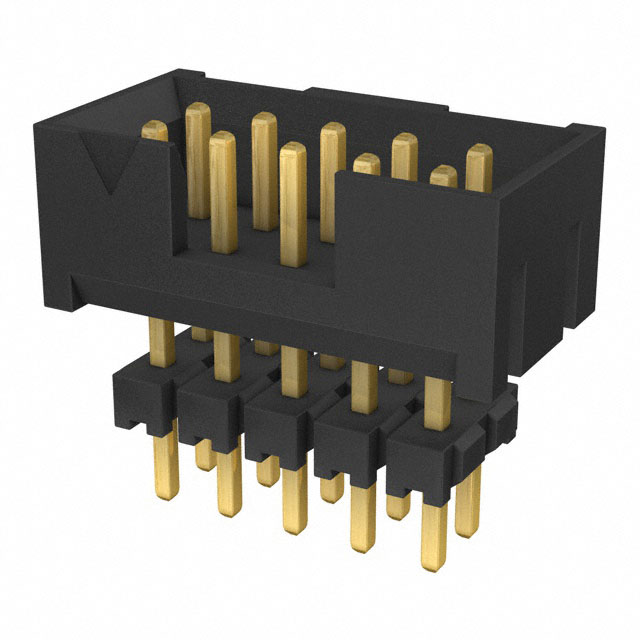

ZLTMM-105-65-G-D-315

Active

Samtec Inc.

CONN HEADER VERT 10POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ZLTMM-105-65-G-D-315

Active

Samtec Inc.

CONN HEADER VERT 10POS 2MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZLTMM-105-65-G-D-315

Connector Type	Elevated, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Length - Post	2.62 mm
Contact Length - Post [x]	0.103 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.315 in
Insulation Height	8 mm
Insulation Material	Polyamide (PA), Nylon
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.413 in
Overall Contact Length	10.49 mm
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Termination	Solder

ZLTMM-105 Series

Part	Number of Positions Loaded	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Features	Insulation Height	Insulation Height	Termination	Contact Finish - Mating	Contact Finish - Post	Number of Rows	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Insulation Color	Contact Length - Mating	Contact Length - Mating	Contact Material	Contact Shape	Shrouding	Overall Contact Length	Overall Contact Length	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Connector Type	Insulation Material	Contact Length - Post	Contact Length - Post	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post [x]
Samtec Inc. ZLTMM-105-70-G-D-579	All	0.079 in	2 mm	10	3 µin	0.076 µm	Keying Slot	14.7 mm	0.579 in	Solder	Gold	Gold	2	Push-Pull	0.079 in	2 mm	Black	3.05 mm	0.12 in	Phosphor Bronze	Square	Shrouded - 4 Wall	17.6 mm	0.693 in	0.51 µm	20 µin	Male Pin	Elevated Header	Nylon Polyamide (PA)	0.139 in	3.53 mm	Through Hole	-55 °C	125 °C
Samtec Inc. ZLTMM-105-71-T-D-695	All	0.079 in	2 mm	10			Keying Slot	17.65 mm	0.695 "	Solder		Tin	2	Push-Pull	0.079 in	2 mm	Black	3.05 mm	0.12 in	Phosphor Bronze	Square	Shrouded - 4 Wall	21.08 mm	0.83 in			Male Pin	Elevated Header	Nylon Polyamide (PA)	0.16 in	4.06 mm	Through Hole	-55 °C	105 ░C
Samtec Inc. ZLTMM-105-71-F-D-745	All	0.079 in	2 mm	10			Keying Slot	18.92 mm	0.745 in	Solder	Gold	Tin	2	Push-Pull	0.079 in	2 mm	Black	3.05 mm	0.12 in	Phosphor Bronze	Square	Shrouded - 4 Wall	21.08 mm	0.83 in	0.076 µm	3 µin	Male Pin	Elevated Header	Nylon Polyamide (PA)		2.79 mm	Through Hole	-55 °C	125 °C	0.11 in
Samtec Inc. ZLTMM-105-65-G-D-315	All	0.079 in	2 mm	10	3 µin	0.076 µm	Keying Slot	8 mm	0.315 in	Solder	Gold	Gold	2	Push-Pull	0.079 in	2 mm	Black	3.05 mm	0.12 in	Phosphor Bronze	Square	Shrouded - 4 Wall	10.49 mm	0.413 in	0.51 µm	20 µin	Male Pin	Elevated Header	Nylon Polyamide (PA)		2.62 mm	Through Hole	-55 °C	125 °C	0.103 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.34

Description

General part information

ZLTMM-105 Series

Connector Header Through Hole 10 position 0.079" (2.00mm)
